ABOUT

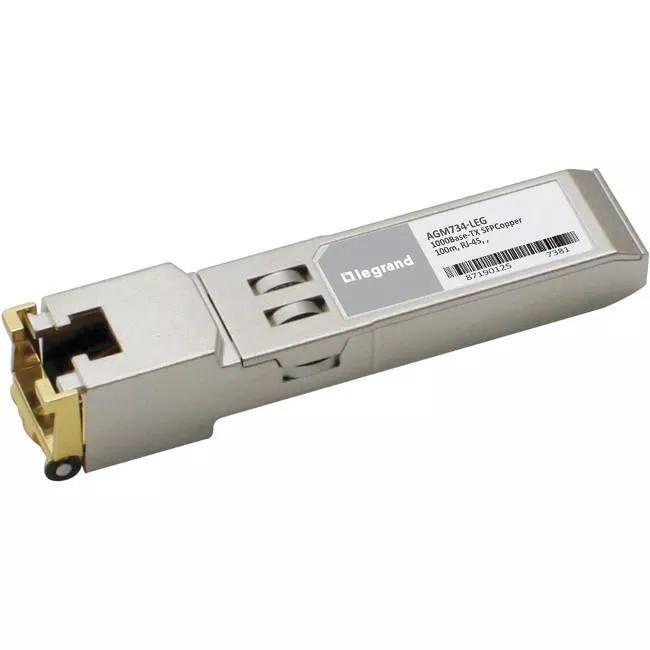

Legrand's AGM734-LEG, Copper Small Form Pluggable (SFP) transceiver is a high performance, cost effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The module supports 1000 Mbps (or 10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.
See More
SPECIFICATIONS
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
AGM734-LEG
Manufacturer Website Address
http://www.legrand.us
Brand Name
Legrand
Product Name
Netgear AGM734 1000Base-TX SFP Transceiver TAA
Product Type
SFP (mini-GBIC)
Technical Information
Application/Usage
Data Networking
Interfaces/Ports
Interfaces/Ports Details
1 x RJ-45 1000Base-TX Network
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
1000Base-TX
Physical Characteristics
Form Factor
Hot-pluggable
Miscellaneous
Compatibility
MSA Compliant
TAA Compliant
Yes
