MPN: 56791

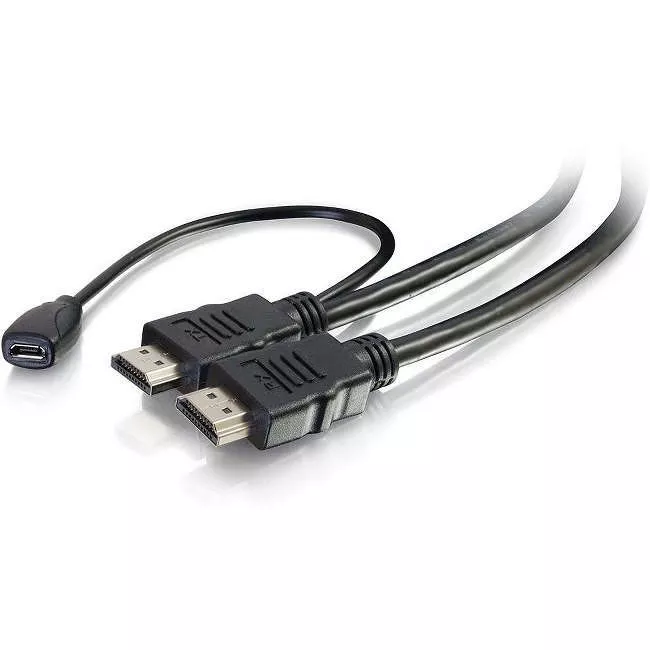

C2G 56791 10ft High Speed HDMI Cable with Built-In Power Inserter - 4K 60Hz
Highlights
About
Specifications
The High Speed HDMI Cable with Built-In Power Inserter supports all HDMI 2.0 features and is the ideal solution for supporting HDMI bus-powered devices such as extenders, active cables, AOC cables or signal-sensing switches. This cable eliminates the need for separate voltage inserters or adapters, which increases reliability.
The power supplies associated with source devices such as computers, teleconferencing codecs, media players and set-top boxes are designed, according to HDMI standards, to deliver a 55mA hot plug supply. When an accessory demands more current than the source can supply, the system may fail to operate dependably. Insufficient power may manifest as a flashing image (HDCP problem), distorted video (EDID related issues), or even a complete loss of the image (hot plug assertion failure). The HDMI Cable with Built-In Power Inserter allows for the necessary and proper voltages for the hardware handshake, HDCP key authentication and exchange, EDID information exchange and hot plug connection detect.
The attached power inserter isolates the power from the source device and provides dedicated power to support HDMI switching, splitting, and extension accessories. If an installation leverages active cables with embedded chipsets, embedded electronic-to-optical media conversion, signal-sensing, auto-switching or similar devices, then this power inserter will be a critical performance element.
Note: For proper use of this cable, the USB Micro-B female connector must be attached to a power source. The cable is directional with a Source/Transmitter (TX) side and a Display/Receiver (RX) side. The cable and HDMI connectors are marked with TX and RX for added convenience.
