Highlights:
  • Output Power: 1000 W
  • Plug/Connector: On/Off Switch
  • Condition: New
  • Category: Power Devices
Contact sales for pricing

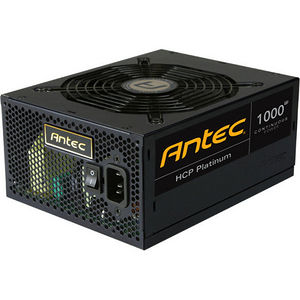

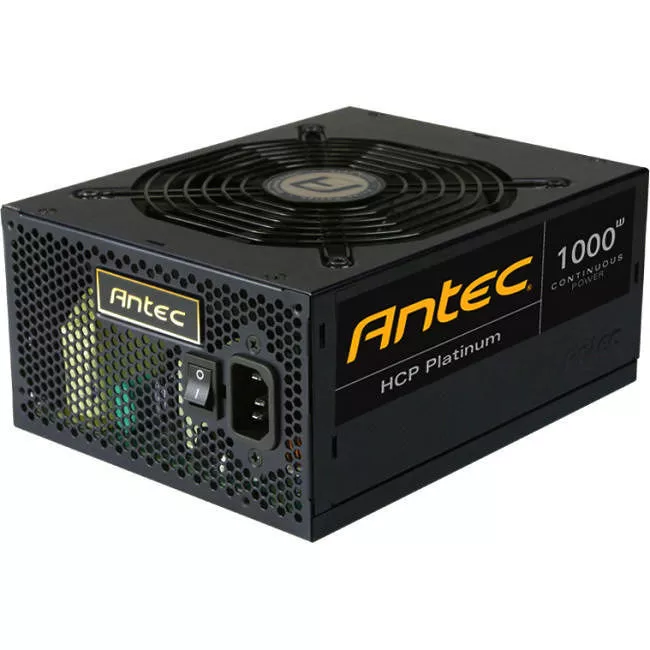

Antec's High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS PLATINUM & ErP Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies. HCP Platinum's innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. All cables are darkened to become Stealth Wires and are thus nearly invisible in your chassis. 4 High Current Rails and a 100% +12V output ratio maximize HCP-1000 Platinum's capabilities to power the latest CPU's & GPU's. CircuitShield™ makes the HCP-1000 Platinum safe and reliable in any environment with its nine industrial-grade protections. Backed by a 7 year warranty and lifetime global 24/7 support, the HCP-1000 Platinum embodies everything a power supply can accomplish today.

General Information
Manufacturer
Antec, Inc
Manufacturer Part Number
HCP-1000 PLATINUM
Manufacturer Website Address
http://www.antec.com/us/
Brand Name
Antec
Product Line
High Current Pro
Product Series
Platinum
Product Model
HCP-1000 PLATINUM
Product Name
High Current Pro Platinum HCP-1000 ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
94%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Current
  • Over Voltage
  • Under Voltage
  • Short Circuit
  • Over Power
  • Over Temperature
  • Surge
  • Inrush Current
  • No Load
  • Brownout
  • Modular
    Yes
    NVIDIA SLI Supported
    Yes
    Power Description
    Number of +12V Rails
    4
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Input Voltage Range
    100 V AC to 240 V AC
    Output Voltage
  • 3.3 V DC @ 25 A
  • 5 V DC @ 25 A
  • 12 V DC @ 40 A
  • -12 V DC @ 500 mA
  • 5 V DC @ 3 A
  • Input Current
  • 13 A @ 110V
  • 6.50 A @ 220V
  • Output Power
    1000 W
    Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 1 x 8-pin EPS12V Motherboard
  • 6 x 6+2pin PCI-E
  • 6 x 4-pin LP4 Peripheral Device
  • 9 x Serial ATA
  • 1 x 4-pin SP4 Floppy Drive
  • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    7.5"
    Weight (Approximate)
    4.70 lb
    Miscellaneous
    Compatibility

    CPU

    Environmentally Friendly
    Yes
    Environmental Certification
  • 80 Plus Platinum
  • ErP Lot 6
  • RoHS
  • Warranty
    Limited Warranty
    7 Year
