Highlights:
  • Output Power: 750 W
  • Product Type: Power Supply
  • Condition: New
  • Category: Power Devices
Contact sales for pricing
Elite power meets unrivaled performance

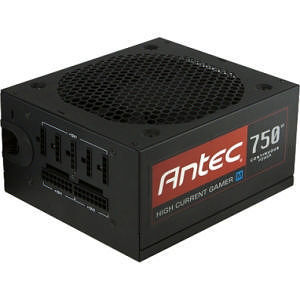

Antec's HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS® BRONZE certification and Active PFC. HCG M's innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm LED double ball bearing fan complete the package. CircuitShield™ makes the HCG-750M safe and reliable in any environment with its nine industrial-grade protections. If loads of power, High Current engineering and extreme efficiency are what you're after, the HCG M is the PSU for you.
General Information
Manufacturer
Antec, Inc
Manufacturer Part Number
HCG-750M
Manufacturer Website Address
http://www.antec.com/us/
Brand Name
Antec
Product Line
High Current Gamer
Product Model
HCG-750M
Product Name
High Current Gamer HCG-750M ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
88%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Current
  • Over Voltage
  • Under Voltage
  • Short Circuit
  • Over Temperature
  • Surge
  • Inrush Current
  • Modular
    Yes
    ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Input Voltage Range
    100 V AC to 240 V AC
    Output Voltage
  • 3.3 V DC @ 25 A
  • 5 V DC @ 25 A
  • 12 V DC @ 40 A
  • -12 V DC @ 500 mA
  • 5 V @ 3 A
  • Input Current
  • 10 A @ 110V
  • 5 A @ 220V
  • Output Power
    750 W
    Interfaces/Ports
    Receptacles
  • 1 x 20+4pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 4 x 6+2pin PCI-E
  • 9 x Serial ATA
  • 6 x 4-pin LP4 Peripheral Device
  • 1 x 4-pin SP4 Floppy Drive
  • Physical Characteristics
    Color
    Black
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    6.7"
    Length
    12.2"
    Weight (Approximate)
    4.70 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
  • 80 Plus Bronze
  • ErP
  • Warranty
    Limited Warranty
    5 Year
