Highlights:
  • Output Power: 550 W
  • Plug/Connector: On/Off Switch
  • Product Type: Power Supply
  • Condition: New
Contact sales for pricing

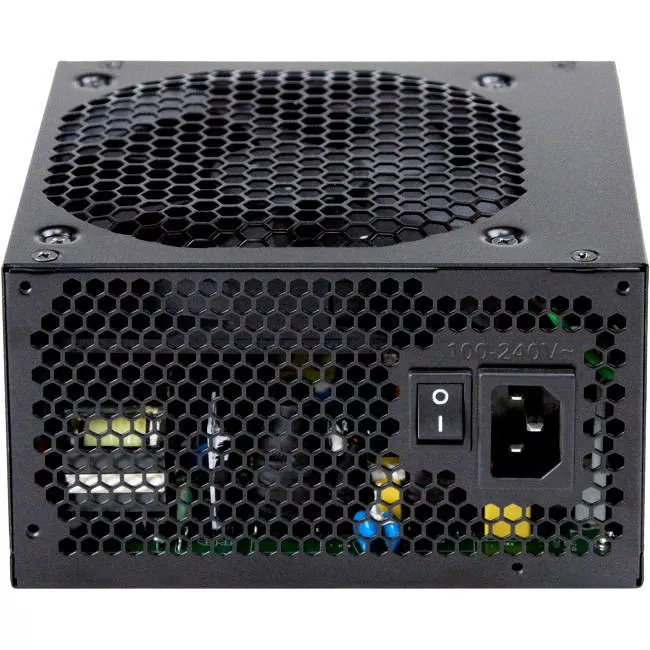

Antec's EarthWatts Platinum is one of the most efficient PSU series ever created. With an 80 PLUS PLATINUM rating, the highest efficiency mark for power supplies, this PSU achieves up to 93% efficiency and gives you savings unheard of from other power supplies. By using the EA-550 Platinum, you can reduce your computer's power consumption by 25%. A 3 year Antec Quality warranty, a whisper-quiet 120mm DBB fan controlled by Antec's renowned Thermal Manager and CircuitShield's industry-leading 7 levels of protection make the EA-550 Platinum one of the best choices available. Get the power you need, save money and help protect the environment with Antec's EA-550 Platinum!

General Information
Manufacturer
Antec, Inc
Manufacturer Part Number
EA-550 PLATINUM
Manufacturer Website Address
http://www.antec.com/us/
Brand Name
Antec
Product Line
EarthWatts
Product Model
EA-550
Product Name
EarthWatts EA-550 Platinum ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
93%
Number of Fans
1
Protection Type
  • Over Current
  • Over Voltage
  • Under Voltage
  • Short Circuit
  • Over Power
  • Surge
  • Inrush Current
  • No Load
  • Brownout
  • Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Input Voltage Range
    100 V AC to 240 V AC
    Output Voltage
  • 3.3 V DC @ 16 A
  • 5 V DC @ 16 A
  • 12 V DC @ 30 A
  • -12 V DC @ 300 mA
  • 5 V DC @ 3 A
  • Input Current
  • 8 A @ 110V
  • 4 A @ 220V
  • Output Power
    550 W
    Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 2 x 6+2pin PCI-E
  • 4 x 4-pin LP4 Peripheral Device
  • 5 x Serial ATA
  • 1 x 4-pin Floppy Drive
  • Physical Characteristics
    Color
    Black
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    5.5"
    Length
    9.2"
    Weight (Approximate)
    4.20 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
  • 80 Plus Platinum
  • RoHS
  • ErP
  • Warranty
    Limited Warranty
    3 Year
