Highlights:
  • Output Power: 430 W
  • Plug/Connector: On/Off Switch
  • Product Type: Power Supply
  • Condition: New
Contact sales for pricing

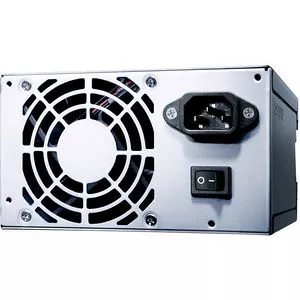

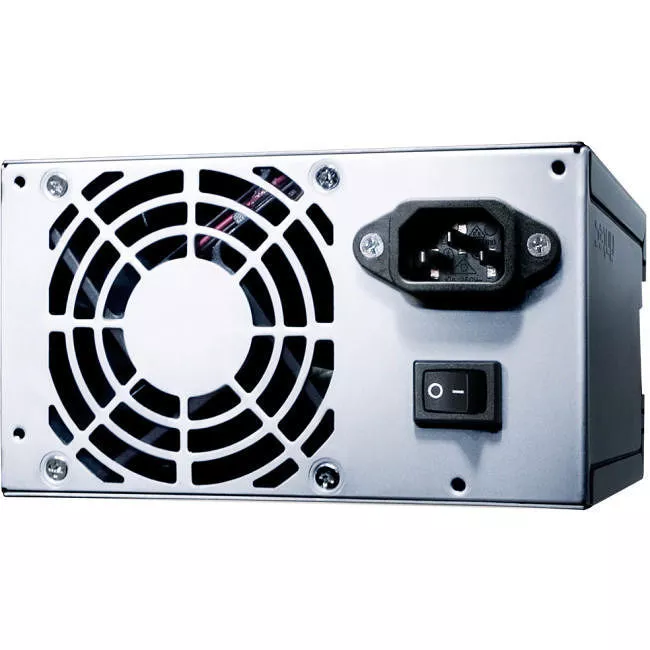

The ideal choice in high-quality value-priced power supplies, the Basiq 430 is the perfect power supply for the entry-level power user, providing stable power and quiet cooling. The Basiq 430 boasts a quiet-running 80mm fan to keep cool while creating minimal noise, and safety protection circuitry to prevent damage from short circuits, over currents, and over voltage electrical dangers. Featuring Universal Input and Active Power Factor Correction to work on any power grid on the planet, the Basiq 430 features SATA power connectors, a 6-pin PCI-E graphics connector, as well as dual 12V output circuits to ensure greater system stability.

General Information
Manufacturer
Antec, Inc
Manufacturer Part Number
BP-430
Manufacturer Website Address
http://www.antec.com/us/
Brand Name
Antec
Product Model
BP-430
Product Name
Basiq BP-430 ATX12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V
Efficiency
82%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Current
  • Over Voltage
  • Short Circuit
  • Over Power
  • Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Input Voltage Range
    100 V AC to 240 V AC
    Output Voltage
  • 3.3 V DC @ 20 A
  • 5 V DC @ 20 A
  • 12 V DC @ 17 A
  • 12 V DC @ 16 A
  • -12 V DC @ 800 mA
  • 5 V DC @ 2.50 A
  • Input Current
  • 8 A @ 110V
  • 4 A @ 220V
  • Output Power
    430 W
    Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4-pin ATX12V Motherboard
  • 1 x 6-pin PCI-E
  • 3 x Serial ATA
  • 4 x 4-pin LP4 Peripheral Device
  • 1 x 4-pin SP4 Floppy Drive
  • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    5.5"
    Weight (Approximate)
    3.20 lb
    Miscellaneous
    Additional Information
    • 2 x +12V Rails
    • 1 x 20+4 Pin Main Connector
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • 80 Plus
  • Country of Origin
    China
    Warranty
    Limited Warranty
    3 Year
