ABOUT
The Microsemi Adaptec Series 7 RAID adapter family features Microsemi's 24 port PM8015 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 6Gb/s SAS ports to enable a new generation of high- performance RAID adapters that are unmatched by any other ROC in the industry. Microsemi Adaptec Series 7 RAID adapters are available with 8, 16, or 24 native SAS/SATA ports.
See More
SPECIFICATIONS
General Information
Manufacturer
Microsemi Corporation
Manufacturer Part Number
2274900-R
Manufacturer Website Address
http://www.microsemi.com
Brand Name
Microsemi Adaptec
Product Series
7
Product Model
72405
Product Name

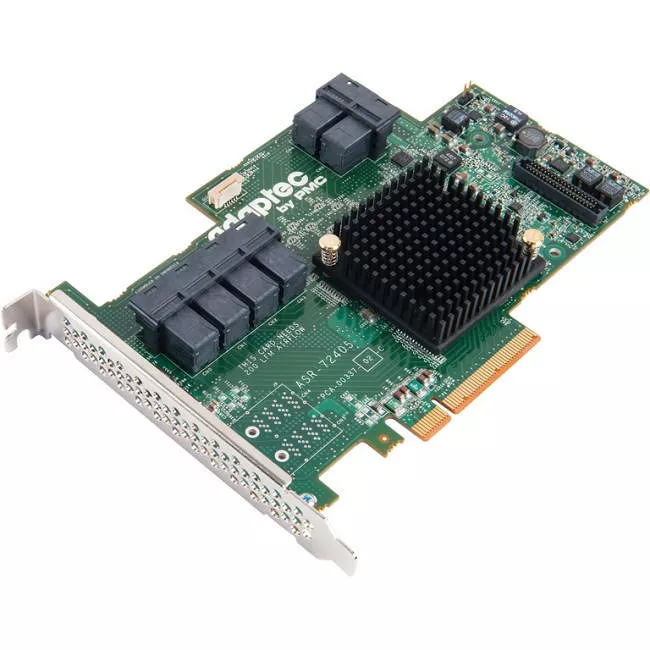

72405 24-Ports SAS/SATA RAID Controller
Packaged Quantity
1
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
RAID Supported
Yes
RAID Levels
Number of Physical Drive Supported
256
Interfaces/Ports
Total Number of SAS Ports
6
Number of SAS Ports (Internal)
6
SAS Connector Details
6 SFF-8643
Physical Characteristics
Height
4.2"
Width
6.6"
Form Factor
Plug-in Card
Card Length
Half-length
Card Height
Full-height
Miscellaneous
Package Contents
- 72405 24-Ports SAS/SATA RAID Controller
- Adaptec RAID Installation DVD (bootable, incl. documentation, drivers & software)
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
See More
