ACR-UM.CB6AA.001-00
MPN: UM.CB6AA.001

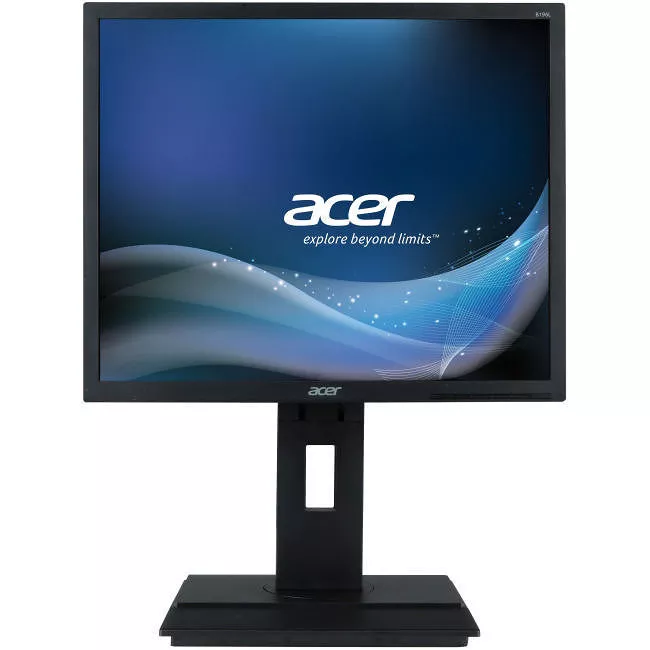

Acer UM.CB6AA.001 B196L 19" Class SXGA LCD Monitor - 5:4 - Dark Gray

Highlights
General Information
Manufacturer
Acer, Inc
Manufacturer Part Number
UM.CB6AA.001
Manufacturer Website Address
http://us.acer.com
Brand Name
Acer
Product Series
B
Product Model
B196L
Product Name
B196L LCD Monitor
Product Type
LCD Monitor
Technical Information
Number of Screens
1
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Screen Surface
Anti-glare
Panel Technology
Twisted Nematic Film (TN Film)
Response Time
5 ms
Aspect Ratio
5:4
Horizontal Viewing Angle
170°
Vertical Viewing Angle
160°
Adjustable Display Angle
Yes
Adjustable Display Height
Yes
Adjustable Display Pivot
Yes
Backlight Technology
LED
HDCP Supported
Yes
Maximum Adjustable Height
5.91"
Adjustable Stand Height
Yes
Video
Maximum Resolution
1280 x 1024
Standard Refresh Rate
75 Hz
Color Supported
16.7 Million Colors
Contrast Ratio
100,000,000:1
Brightness
250 Nit
Audio
Number of Speakers
2
Speakers
Yes
Speaker Output Power
1 W
Interfaces/Ports
DVI
Yes
VGA
Yes
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
    • Operating Power Consumption
    15.80 W
    Standby Power Consumption
    450 mW
    Off-Mode Power Consumption
    350 mW
    Operating Power Consumption (Energy Star)
    15.80 W
    Physical Characteristics
    VESA Mount Standard
    100 x 100
    Color
    Dark Gray
    Height
    13.3"
    Width
    16"
    Depth
    2"
    Height with Stand
    20.44"
    Width with Stand
    16"
    Depth with Stand
    8.70"
    Weight (Approximate)
    7.05 lb
    Weight with Stand (Approximate)
    11.68 lb
    Miscellaneous
    Package Contents
    • B196L LCD Monitor
    • 1 x DVI Cable
    • 1 x VGA Cable
    • Power Cord
    Environmentally Friendly
    Yes
    Environmental Certification
    TCO Certified
    TCO Certified
    Yes
    Warranty
    Limited Warranty
    3 Year
