- Product Type: Signal Splitter
- Condition: New
- Category: Video Cards and Devices
- Subcategory: Video Devices

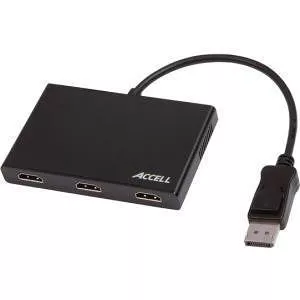

The Accell UltraAV DisplayPort 1.2 to 3 HDMI Multi-Display MST Hub allows you to enjoy up to three independent HDMI monitors from a single DisplayPort output while utilizing the new multi-stream transport (MST) protocol.Supports up to 3 Displays Independently
The MST Hub can support up to three high-resolution displays independently, two monitors with resolutions up to 1920x1080 @60Hz and the third monitor up to 2560x1600 @60Hz*. With the UltraAV MST Hub you can chose to expand a single image across three displays, perfect for high resolution gaming. For the efficiency and productivity of multi-tasking, easily dedicate each display to a separate application.
*The maximum resolution is dependent on the throughput of DP 1.2 or HDMI 1.4 as well as the graphics and display solution used.
For a digital signage or video wall application, use two MST Hubs with a video card that supports multiple DisplayPort outputs. This setup will provide enough video ports to support up to 6 monitors independently. The use of multiple MST Hubs requires a computer and a graphics system with enough display pipes to support the multi-display array.
- DisplayPort 1.2 to 3 HDMI Multi-Display MST Hub
- AC Adapter: Input: 5V, Output: 3.3V
- Product Guide
- Utilizes new Multi-Stream Transport (MST) protocol (DP 1.2 required)
- Supports DisplayPort per lane data rates up to 5.4 Gbps (HBR2)
- Compatible with DVI displays using optional adapters
- Compatible to HDMI 1.4a specification up to 10.2Gbps per port
- Supports 3D video formats
- Standards compliance: DisplayPort v1.2/1.1a, VESA DDM, HDCP V1.3 and EDID V1.4
- Supports input pixel data depth 6/8/10/12 bits
- Supports output pixel format RGB444
- Using 3 displays: 2 displays at 1920x1080 @60Hz and 1 display at 2560x1600 @60Hz
- Using 2 displays: 1 display at 2560x1600 @60Hz and 1 display at 1920x1200 @60Hz
- Using 1 display: Supports 4Kx2K @30Hz video formats
- Graphic Output: DisplayPort v.1.1 or v.1.2
- Works on Windows PC and Mac OS computers
