Highlights:
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 1 | 1E | 10
Contact sales for pricing

ATTO 12Gb SAS HBAs double the performance over previous generations of SAS/SATA cards and offer fresh new features that reduce downtime, improve efficiency and save money on the bottom line. They provide more flexibility for connecting storage, greatly decrease latency to SATA drives, make it easier to manage the overall storage infrastructure and improve connection diagnostic capabilities - all at a lower total cost of ownership.

General Information
Manufacturer
Atto Technology
Manufacturer Part Number
ESAH-1280-000
Manufacturer Website Address
http://www.attotech.com
Brand Name
ATTO
Product Line
ExpressSAS
Product Model
ESAH-1280-000
Product Name

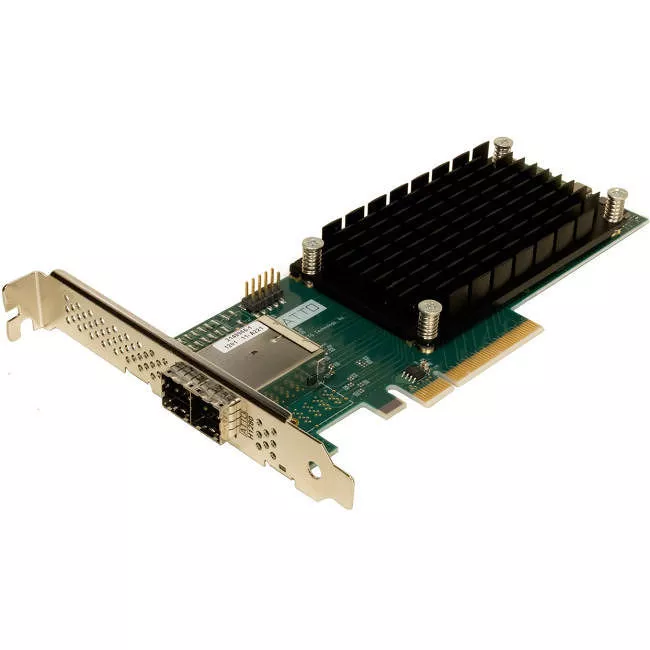

8 External Port 12Gb/s SAS/SATA to PCIe 3.0 Host Bus Adapter
Product Type
SAS Controller
Technical Information
Host Interface
PCI Express 3.0 x8
Controller Type
12Gb/s SAS
RAID Supported
Yes
RAID Levels
  • 0
  • 1
  • 1E
  • 10
  • Interfaces/Ports
    Total Number of SAS Ports
    8
    Number of SAS Ports (External)
    8
    SAS Connector Details
    SFF-8644
    Physical Characteristics
    Form Factor
    Plug-in Card
    Miscellaneous
    Platform Supported
  • PC
  • Linux
  • Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Warranty
    Limited Warranty
    3 Year
