MPN: CLCS1708IKIT

ATEN CLCS1708IKIT LCD Console with 8-Port IP KVM Bundle

Highlights

About

Specifications

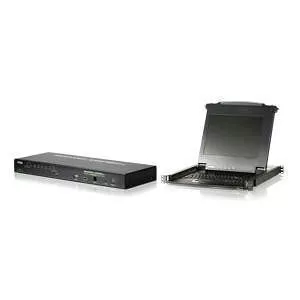

ATEN's 17 LCD integrated console and 8-port IP KVM bundle offers a streamlined and economic approach to IT environments. The CL1000M, incorporates a keyboard with touchpad and a 17 LCD monitor into a 1U Slideaway housing. The bundled ATEN IP KVM, CS1708i, allows you to manage 8 computers either directly from the CL1000M, or remotely from anyplace on your network or the internet.

Specifications

General Information

Manufacturer

ATEN Technology, Inc

Manufacturer Part Number

CLCS1708IKIT

Manufacturer Website Address

http://www.aten.com/us/en/

Brand Name

ATEN

Product Model

CLCS1708IKit

Product Name

KVM Kit

Product Type

KVM Kit

Miscellaneous

Additional Information

Hardware:

8-port remote access KVM switch - monitor and control up to 8 computers from a single KVM console
Daisy chain up to 15 additional units - control up to 128 computers
Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Multiplatform support - Windows, Linux, Mac, and Sun
Dual Interface - supports PS/2 or USB keyboard and mouse computers
Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
BIOS-level access
Mouse DynaSync
Rack mountable in a 19" system rack

Management:

Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
Event Logging
Up to 32 concurrent logins
Broadcast mode; operations simultaneously performed on all selected computers(software installation, system-wide shutdown, etc.)
Port names automatically reconfigured when station sequence is changed
Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
On-screen keyboard with multilanguage support

Security:

Secure keyboard/mouse/video transmission via RC4 128bit encryption
128bit SSL browser access
Two level password secuirty - up to 64 user accounts with separate profiles for each
External(remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
Support for IP/Mac Filter
Local and remote access logged and authenticated

Package Contents

1 x CL1000M, 17" LCD Integrated Console
1 x 6ft PS2 KVM Cable
1 x CS1708i, 8-port IP KVM
