Highlights:
  • Number of Total Expansion Bays: 10
  • Ethernet Technology: Gigabit Ethernet
  • Network (RJ-45): Yes
  • Processor Core: Quad-core (4 Core)
Contact sales for pricing

The first NAS models to be powered by the latest Intel Celeron processors

AS62 series devices are powered by IntelCeleron Braswell quad-core processors, equipped with 4GB of dual-channel memory, and feature read speeds of over 398 MB/s and write speeds of over 355 MB/s under RAID 5 configurations.

Hardware encryption engine

Focusing on enterprise-class file encryption needs, ASUSTOR has launched the AS61/AS62 series models with built-in hardware encryption engines, allowing data to be completely protected from the moment it is first stored on the NAS. This means that you never have to worry about your confidential data falling into the wrong hands even if your hard disks become lost or stolen. The built-in AES-NI hardware encryption engine also provides read speeds of over 224.71 MB/s and write speeds of over 132.56 MB/s for encrypted data.

Connect with a new generation of I/O technology for limitless possibilities

A professional grade NAS needs to be equipped with a diverse array of expansion functionality. ASUSTOR has built in USB 3.0, USB 2.0, eSATA, gigabit Ethernet and HDMI 1.4b ports along with a high fidelity audio S/PDIF port, allowing the NAS to connect to different types of external devices and not be limited to its internal capacity. ASUSTOR NAS redefines the meaning of flexibility and expandability in network storage.

Effortlessly upgrade memory

Depending on your usage preferences, you can decide whether or not you want to upgrade memory. AS61/62 devices provide users with the ability to flexibly upgrade memory so there is no need to worry about the memory before you purchasing the device. When upgrading memory, you simply need to remove the cover of the NAS to do it (There are 2 expansion memory slots in total. Memory can be expanded up to a maximum of 8GB.), letting you easily improve system performance and allowing your NAS to simultaneously run more Apps.

Quick and Easy File Access

The built-in File Explorer App allows you to access the files on your NAS through a Web browser. Enjoy drag and drop file transfers along with a directory structure view that lets you easily organize your data. Accessing files on your NAS never been easier.

iSCSI LUN Snapshots

ASUSTOR's snapshot technology provides almost instantaneous creation of snapshots. It saves a significant amount of time and storage capacity when compared with traditional LUN backups.
Should files become damaged or corrupted, the simple and intuitive interface allows administrators to quickly restore data, completing disaster recovery in the fastest time possible and providing uninterrupted service.

Scheduled iSCSI LUN snapshots

Configuring scheduled iSCSI LUN snapshots allows the system to automatically take regular snapshots based on the specified time period, providing continuous protection of LUN data without needing any manual operation or significantly affecting system performance.

General Information
Manufacturer
ASUSTOR
Manufacturer Part Number
AS6210T
Manufacturer Website Address
http://www.asustor.com
Brand Name
ASUSTOR
Product Model
AS6210T
Product Name

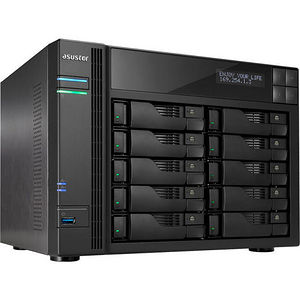

AS6210T SAN/NAS Server
Packaged Quantity
1
Product Type
SAN/NAS Storage System
Processor & Chipset
Processor Manufacturer
Intel
Processor Type
Celeron
Processor Core
Quad-core (4 Core)
Processor Speed
1.60 GHz
Memory
Standard Memory
4 GB
Memory Technology
DDR3L SDRAM
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
10
Number of 2.5"/3.5" Bays
10
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 6, 10, JBOD
Interfaces/Ports
HDMI
Yes
Total Number of USB Ports
5
Number of USB 2.0 Ports
2
Number of USB 3.0 Ports
3
Network (RJ-45)
Yes
eSATA
Yes
Software
Operating System
ADM 2.5
Management & Protocols
Protocols
  • IPv6
  • RTSP
  • PAP
  • SMB 2.0
  • WEBDAV
  • CHAP
  • SSL/TLS
  • AFP
  • HTTPS
  • FTP
  • SSH
  • UDP
  • SMTP
  • SFTP
  • iSCSI
  • TFTP
  • IPv4
  • UPnP
  • TCP/IP
  • PPTP
  • HTTP
  • CIFS/SMB
  • NFS
  • DDNS
  • RSync
  • SNMP
  • Physical Characteristics
    Height
    8.5"
    Width
    11.5"
    Depth
    9.1"
    Form Factor
    Desktop
    Weight (Approximate)
    14.11 lb
    Miscellaneous
    Package Contents
    • AS6210T SAN/NAS Server
    • 1 x Installation CD
    • 1 x AC Power Cord
    • 1 x RJ-45 LAN Cables (Cat 5e)
    • 32 x Flat Head Screws (for 3.5" HDD)
    • 32 x Flat Head Screws (for 2.5" HDD)
    • Quick Start Guide
    Warranty
    Limited Warranty
    3 Year
