Highlights:
  • Number of Total Expansion Bays: 2
  • Ethernet Technology: Gigabit Ethernet
  • Network (RJ-45): Yes
  • Processor Core: Dual-core (2 Core)
Contact sales for pricing

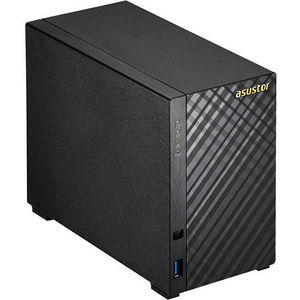

A Powerful and Economical Intel Dual-Core NAS

  • Powered by the latest Intel Celeron processors
  • Hand screw design for toolless installation
  • Stylish diamond-plate finished cover design
  • Equipped with hardware transcoding engine
  • Now with two Gigabit ports, up to double the speed

Upgrade to 2 Gigabit network ports, doubling transmission performance

AS3102T v2 is upgraded to be equipped with two Gigabit network ports, allowing to enable network link aggregation mode, and the bandwidth can be combined to maximize the network transmission efficiency and provide up to 2 Gb/s network bandwidth. The doubled network transmission speed in the local network provides photographer and multimedia studios with the need to transfer and back up large-capacity files and multiple processing to construct a faster and more efficient private cloud space.

Rock Solid Power: Premium Performance

Equipped with Intel Celeron dual-core processors and 2GB of dual-channel memory. Features read/write speeds of over 113 MB/s and 110 MB/s under RAID 1 configurations. Built-in Intel AES-NI hardware encryption engine features read/write speeds of 113 MB/s and 65 MB/s, giving you both performance and security advantages. Your data is completely protected from the moment it is first stored on the NAS.

Add modern flair to your favorite space

The AS31 series devices redefine the aesthetics of a NAS. The stylish diamond-plate finished cover makes it an elegant addition to any space, no matter if it is a family room, living room or office.

Flexible configuration capacity

The AS31 v2 series features an updated internal hard drive slot design that is fully compatible with 3½ hard drives. It also supports hard drives with a large capacity and improves the flexibility for those who wish to build private clouds.

Save power to save money

ASUSTOR NAS products are designed and developed around ecologically friendly concepts. When in use, our devices consume far less power than the average computer or server. Furthermore, our advanced power control features allow you to more efficiently manage your NAS device and hard drives. This lowers your electric bill and prolongs the lifespan of your hard drives all at the same time. While in disk hibernation, the AS3102T v2 consumes only 8.1 W of power. Under normal operating conditions it still only consumes 14.6 W of power.

Toolless installation

The AS31 series' sliding outer cover design allows it to be conveniently removed when needed. The inner hard disk rails and outer cover all use hand screws allowing for the simple installation of hard disks without any extra tools.

PC-less Software Installation

Mobile installation with AiMaster takes only 3 steps! Finding your NAS, system initialization and installation, power management, ADM firmware updates, system information and more are all available from the convenience of your mobile device at any time.

24/7 reliability and durability

All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.

Cross-Platform Multi-User Access

The ASUSTOR NAS provides seamless cross-platform and multi-user access, allowing you to easily connect to your NAS from Windows, Mac OS X or Unix-like operating systems no matter if you are using a PC, notebook, tablet or smartphone.

General Information
Manufacturer
ASUSTOR
Manufacturer Part Number
AS3102T V2
Manufacturer Website Address
http://www.asustor.com
Brand Name
ASUSTOR
Product Model
AS3102T V2
Product Name
AS3102T V2 SAN/NAS Storage System
Packaged Quantity
1
Product Type
SAN/NAS Storage System
Storage
Number of Hard Drives Supported
2
Number of Hard Drives Installed
No
Processor & Chipset
Processor Manufacturer
Intel
Processor Type
Celeron
Processor Core
Dual-core (2 Core)
Processor Speed
1.60 GHz
Memory
Standard Memory
2 GB
Memory Technology
DDR3L SDRAM
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
2
Number of 3.5" Bays
2
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, JBOD
Interfaces/Ports
HDMI
Yes
Total Number of USB Ports
3
Number of USB 3.0 Ports
3
Network (RJ-45)
Yes
Software
Operating System
ADM 3.1
Management & Protocols
Protocols
  • DLNA
  • IPv6
  • FTPS
  • RTSP
  • PAP
  • SMB 2.0
  • WEBDAV
  • CHAP
  • SSL/TLS
  • AFP
  • HTTPS
  • FTP
  • UDP
  • SSH
  • IMAP
  • SMTP
  • SFTP
  • LDAP
  • iSCSI
  • TFTP
  • IPv4
  • UPnP
  • PPTP
  • TCP/IP
  • HTTP
  • DDNS
  • CIFS/SMB
  • NFS
  • POP3
  • SNMP
  • RSync
  • Physical Characteristics
    Height
    6.5"
    Width
    4"
    Depth
    8.6"
    Form Factor
    Desktop
    Weight (Approximate)
    2.58 lb
    Miscellaneous
    Package Contents
    • AS3102T V2 SAN/NAS Storage System
    • 1 x Installation CD
    • 1 x AC Power Cord
    • 1 x AC Power Adapter
    • 2 x RJ-45 LAN Cables (Cat 5e)
    • 8 x Thumb Screws (for 3.5" HDD)
    • Quick Start Guide
    Warranty
    Limited Warranty
    3 Year
