Highlights:
  • Sound Channels: 7.1
  • Host Interface: PCI Express
  • Number of Headphone Ports: 1
  • Platform Supported: PC
Contact sales for pricing
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
XONAR DX
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Line
Xonar
Product Model
DX
Product Name

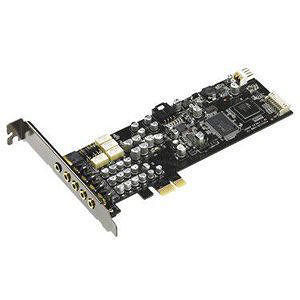

Xonar DX 7.1 Channel PCI Express Sound Card
Product Type
Sound Board
Technical Information
Audio Processor Manufacturer
ASUS
Audio Processor Model
AV100
Host Interface
PCI Express
Signal to Noise Ratio (SNR)
  • 116 dB
  • 112 dB
  • Minimum Frequency Response
    10 Hz
    Maximum Frequency Response
    48 kHz
    DAC Data Width
    24 bit
    Sound Channels
    7.1
    Platform Supported
    PC
    Interfaces/Ports
    Number of Microphone Ports
    1
    Number of Audio Line In
    1
    Number of Headphone Ports
    1
    Number of Audio Line Out
    4
    Auxiliary Audio In
    Yes
    S/PDIF Out
    Yes
    Physical Characteristics
    Form Factor
    Internal
    Miscellaneous
    Package Contents
    • Xonar DX 7.1 Channel PCI Express Sound Card
    • Driver CD
    • S/PDIF TOSLINK optical adaptors
    • Quick Start Guide
    Additional Information

    Driver Features:

    • Dolby Digital Live
    • Dolby Headphone
    • Dolby Virtual Speaker
    • Dolby Pro-Logic IIx
    • DS3D GX 2.0
    • VocalFX
    • Acoustic Echo Cancellation (AEC)
    • Smart Volume Normalizer
    • Karaoke Functions
    • FlexBass
    • Xear 3D Virtual Speaker Shifter
    • Other Effects
    • 3D Gaming Sound Engines/APIs
    • ASIO 2.0 Driver Support
    System Requirements
    • One PCI Express 1.0 (or higher) compatible slot for the audio card
    • One available 4-pin power cable from PC's power supply unit
    • Microsoft Windows Vista(32/64bit)/XP(32/64bit)/MCE2005
    • Intel Pentium4 1.4GHz or AMD Athlon 1400 CPU or faster CPU
    • >256 MB DRAM system memory
    • >60 MB available HDD space for driver installation package
    • CD-ROM drive (or DVD-ROM drive) for software installation
    • High-quality headphones
    • Powered analog speakers
    • Dolby Digital
    • DTS decoder
