Intel® Core™ i7 Processor LGA2011-v3 Ready
This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
About
Intel® Core™ i7 Processor LGA2011-v3 Ready
This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
Specifications
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
X99-E WS
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
X99-E WS
Product Name

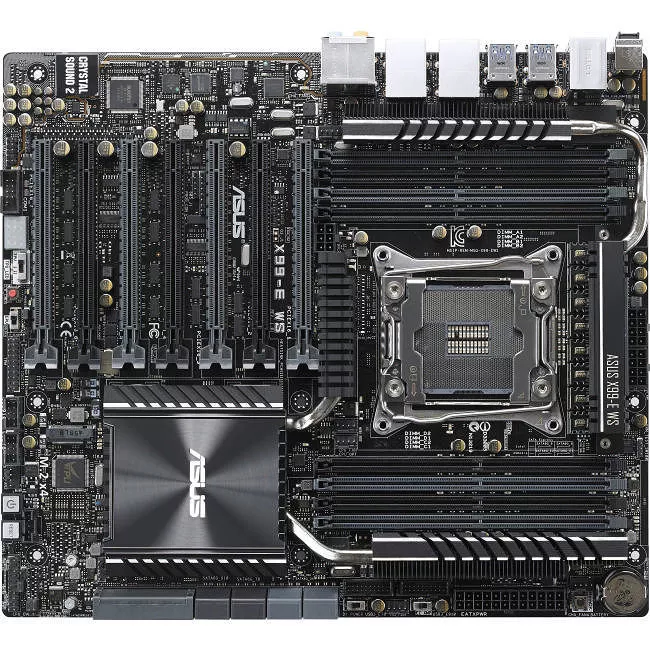

X99-E WS Workstation Motherboard
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
X99
Total Processor Supported
1
Processor Technology
Turbo Boost Technology 2.0
Processor Socket
Socket LGA 2011-v3
Processor Supported
64-bit Processing
Yes
Multi GPU Supported
Memory
Number of Memory Slots
8
Memory Form Factor
DIMM
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR4 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
PCI Express Standard
Total Number of PCI Express Slots
7
Number of PCI Express x16 Slots
7
Interfaces/Ports
eSATA
Yes
Number of eSATA Ports
2
Total Number of USB Ports
10
Number of USB 3.0 Ports
10
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
S/PDIF
Yes
Number of S/PDIF Out Ports
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Onboard Interfaces
Number of SATA Interfaces
8
Number of M.2 Interfaces
1
Number of SATA Express Interfaces
2
Total Number of Onboard USB Ports
8
Number of Onboard USB 2.0 Ports
4
Number of Onboard USB 3.0 Ports
4
Onboard S/PDIF Header
Yes
Onboard Thunderbolt Header
Yes
Controls/Indicators
Buttons & Keys
Power Description
Power Supply Supported
EATX12V
Physical Characteristics
Form Factor
SSI CEB
Width
12"
Depth
10.5"
Miscellaneous
Package Contents
- X99-E WS Workstation Motherboard
- User's Manual
- ASUS Q-Shield
- 1 x COM port Cable(s)
- 12 x SATA 6Gb/s Cable(s)
- 1 x 3-Way SLI Bridge(s)
- 1 x 4-Way SLI Bridge(s)
- 1 x Q-connector(s) (2 in 1)
- 1 x 2-port USB 2.0 Module(s)
Certifications & Standards
ACPI 5.0
Environmentally Friendly
Yes
