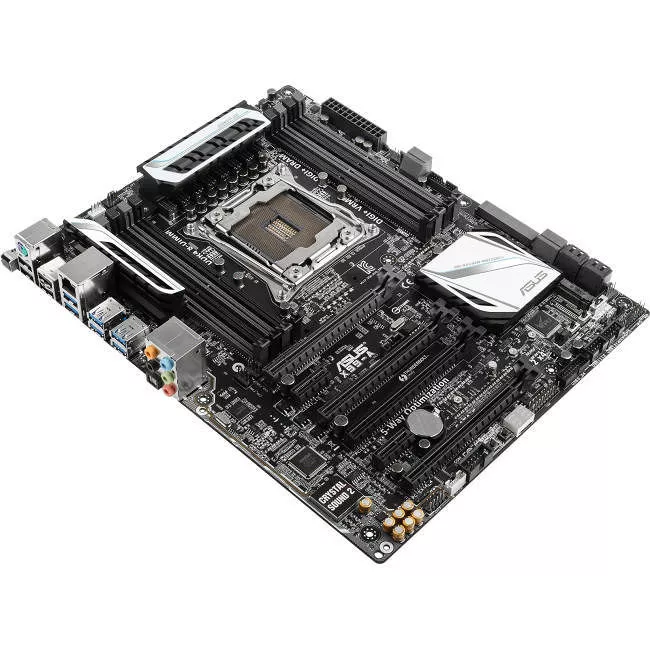

ASUS X99-A Desktop Motherboard - Intel Chipset - Socket LGA 2011-v3

General Information

Manufacturer: ASUS Computer International

Manufacturer Part Number: X99-A

Manufacturer Website Address: http://usa.asus.com

Brand Name: Asus

Product Series: X99-A

Product Model: X99-A

Product Name: X99-A Rev. 1.01 Desktop Motherboard

Marketing Information:

Intel® Core™ i7 Processor LGA2011-v3 Ready

This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.

Intel® X99 Express Chipset

The Intel® X99 Express Chipset is a single-chipset design that supports socket LGA2011-v3 Intel® Core™ i7 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X99 provides a maximum 6 USB 3.0 ports, 10 SATA 6Gbit/s ports for faster data retrieval.

Product Type: Desktop Motherboard

Processor & Chipset

Chipset Manufacturer: Intel

Total Processor Supported: 1

Processor Technology:

Turbo Boost Technology 2.0

Smart Response Technology

Processor Socket: Socket LGA 2011-v3

Processor Supported:

Core i7

Xeon

64-bit Processing: Yes

Memory

Number of Memory Slots: 8

Memory Form Factor: DIMM

Maximum Memory: 64 GB

Memory Standard:

DDR4-3200/PC4-25600 (O.C.)

DDR4-3000/PC4-24000 (O.C.)

DDR4-2800/PC4-22400 (O.C.)

DDR4-2666/PC4-21300 (O.C.)

DDR4-2400/PC4-19200 (O.C.)

DDR4-2133/PC4-17000

Memory Technology: DDR4 SDRAM

Memory Speed Supported:

3.20 GHz (O.C.)

3 GHz (O.C.)

2.80 GHz (O.C.)

2.67 GHz (O.C.)

2.40 GHz (O.C.)

2.13 GHz

I/O Controller

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels:

0

1

5

10

Video

Onboard Video: No

Audio

Sound Controller Manufacturer: Realtek

Sound Controller Model: ALC1150

Audio Channels: 7.1

Network & Communication

Gigabit Ethernet: Yes

I/O Expansions

Number of Total Expansion Slots: 6

PCI Express Standard:

PCI Express 3.0

PCI Express 2.0

Total Number of PCI Express Slots: 6

Number of PCI Express x1 Slots: 2

Number of PCI Express x16 Slots: 4

Interfaces/Ports

Total Number of USB Ports: 10

Number of USB 2.0 Ports: 4

Number of USB 3.0 Ports: 6

Audio Line In: Yes

Audio Line Out: Yes

Microphone Port: Yes

S/PDIF: Yes

Number of S/PDIF Out Ports: 1

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

PS/2 Port: Yes

Number of PS/2 Ports: 1

Onboard Interfaces

Number of SATA Interfaces: 8

Number of SATA Express Interfaces: 1

Total Number of Onboard USB Ports: 8

Number of Onboard USB 2.0 Ports: 4

Number of Onboard USB 3.0 Ports: 4

Onboard Serial Header: Yes

Onboard S/PDIF Header: Yes

Onboard Thunderbolt Header: Yes

Controls/Indicators

Buttons & Keys:

BIOS Flashback

TPU

EPU

MemOK

Power

Reset

EZ XMP

Power Description

Power Supply Supported:

ATX12V

EATX12V

Physical Characteristics

Form Factor: ATX

Width: 12"

Depth: 9.6"

Miscellaneous

Package Contents:

• X99-A Rev. 1.01 Desktop Motherboard
• User's Manual
• Q-Shield
• 4 x SATA 6Gb/s Cables
• 1 x SLI Bridge
• 1 x Q-connector (2 in 1)

Certifications & Standards:

• KC
• CE
• C-Tick
• BSMI
• FCC

Environmentally Friendly: Yes

Environmental Certification:

WEEE

RoHS

Country of Origin: China

Warranty

Limited Warranty: 3 Year
