About
Specifications
True-to-life Pictures Powered by LED
ASUS SPLENDIDâ„¢ Video Intelligence Technology carefully evaluates every pixel in every frame and dynamically adjusts them according to conditions most favorable to the human eye.
About
True-to-life Pictures Powered by LED
ASUS SPLENDIDâ„¢ Video Intelligence Technology carefully evaluates every pixel in every frame and dynamically adjusts them according to conditions most favorable to the human eye.
Specifications
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
VB198T-P
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Series
VB
Product Model
VB198T-P
Product Name

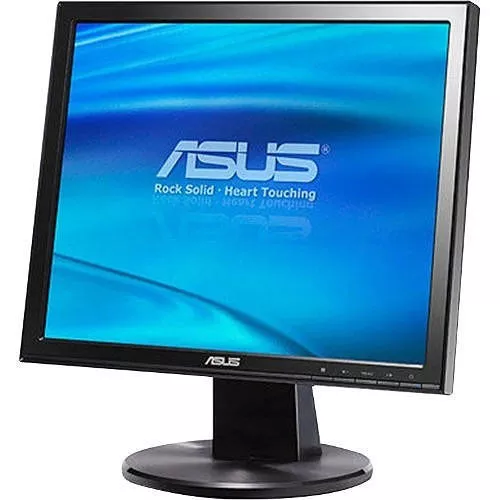

VB198T-P LCD Monitor
Product Type
LCD Monitor
Technical Information
Number of Screens
1
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Response Time
5 ms
Aspect Ratio
4:3
Horizontal Viewing Angle
170°
Vertical Viewing Angle
160°
Adjustable Display Angle
Yes
Mount Type
Wall Mountable
Backlight Technology
LED
HDCP Supported
Yes
Features
Horizontal Frequency
80 kHz
Video
Maximum Resolution
1280 x 1024
Standard Refresh Rate
76 Hz
Color Supported
16.7 Million Colors
Contrast Ratio
50,000,000:1
Brightness
250 Nit
Audio
Number of Speakers
2
Speakers
Yes
Interfaces/Ports
DVI
Yes
VGA
Yes
Power Description
Operating Power Consumption
27 W
Standby Power Consumption
300 mW
Off-Mode Power Consumption
200 mW
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Color Family
Black
Color
Black
Height
15.9"
Width
16.3"
Depth
8.3"
Weight (Approximate)
7.05 lb
Miscellaneous
Package Contents
- VB198T-P LCD Monitor
- DVI Cable
- VGA Cable
- Audio Cable
- Quick Start Guide
- Support CD
- Warranty Card
Certifications & Standards
- C-Tick
- BSMI
- CB
- CCC
- CE
- FCC
- Gost-R
- ISO-9241-307
- PSB
- TUV-Ergo
- TUV-GS
- UL/cUL
- VCCI
- WHQL
Platform Supported
PC
Energy Star
Yes
TCO Certified
Yes
Environmentally Friendly
Yes
Environmental Certification
TCO Certified Displays 5.2
Energy Efficiency Compliance
Energy-related Products Directive (ErP)
Environmental Compliance
Warranty
Limited Warranty
3 Year
