ABOUT
Quad CPUs and 7 expansions up to 2 GPUs support

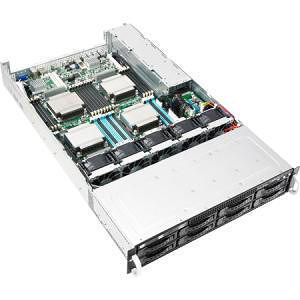

The new ASUS RS920-E7/RS8 server is based the latest Intel® server platform, using 4-way Xeon® Romley-EP 4S processors. Equipped with 32 DIMM slots, eight hot-swap hard drives, 6+1 expansion slots, and 1+1 redundant power supplies, it lays a great foundation for data centers, HPC, and enterprise applications that require outstanding performance, supercomputing capabilities, and high reliability.
See More
SPECIFICATIONS
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
RS920-E7/RS8
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
RS920-E7/RS8
Product Name
RS920-E7/RS8 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
4
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
Processor Technology
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C602-A
Memory
Maximum Memory
1 TB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
32
Storage
Optical Drive Type
DVD-Writer
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 1+0, 5
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2300
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
9
Number of External 5.25" Bays
1
Number of 3.5" Bays
8
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
9
Number of USB 2.0 Ports
6
Number of USB 3.0 Ports
2
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
6
Software
Operating System Supported
Power Description
Maximum Power Supply Wattage
1620 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.5"
Depth
29.5"
Weight (Approximate)
44.09 lb
Miscellaneous
Package Contents
- RS920-E7/RS8 Barebone System
- 1 x RS920-E7 User's Guide
- 1 x ASUS ASWM Enterprise User's Guide
- 1 x Bag of Screws
- 2 x AC Power Cable
- 1 x ASWM ENTERPRISE DVD
- 1 x RS920-E7 Support DVD
- 1 x ASMB6 SERIES DVD
- 1 x ASMB6 User's Guide
Compatibility
- VMWare ESX4.1
- VMWare ESXi4.1
Certifications & Standards
Safety:
- Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI:
- US (FCC, CFR47 Part 15, Class A)
- Europe (CE, EN55022 & EN55024)
- Australia (C-TICK)
- Taiwan (BSMI)
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
