Highlights:
  • Number of Processors Supported: 1
  • Processor Socket: Socket SP3
  • Maximum Memory: 2 TB
  • Memory Standard: DDR4-2666/PC4-21300
Contact sales for pricing

Top performance in industry-standard SPEC benchmarks

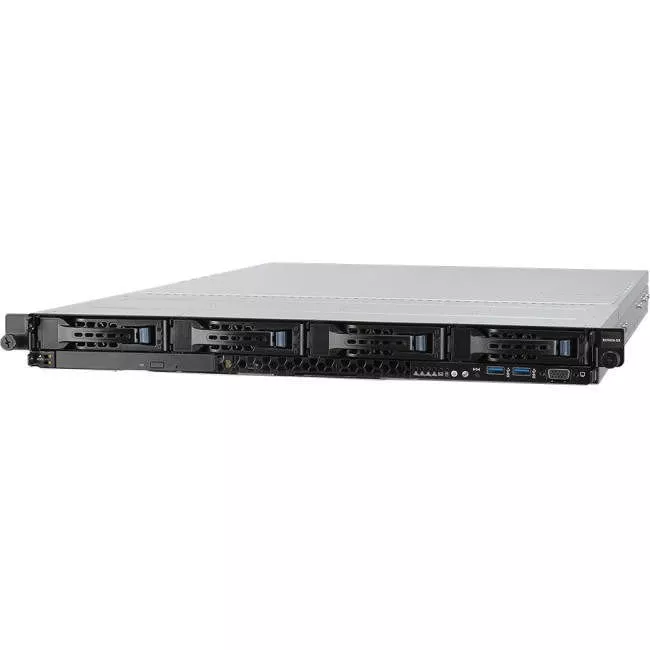

RS500A-E9-PS4 is built on AMD EPYC™ platform to deliver incredible server performance. With up to 32 cores per CPU and up to 64 threads, RS500A-E9-PS4 packs incredible power in minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

Flexible expansion for better storage and networking

RS500A-E9-PS4 features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server.

RS500A-E9-PS4 fits four 3.5-inch hot-swappable 12Gbps SAS or 6Gbps SATA drives. One M.2 slot accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth - 5.3X faster than 6 Gb/s SATA III - for faster boot speeds.

Exclusive Thermal Radar technology for energy efficiency

RS500A-E9-PS4 features ASUS-exclusive Thermal Radar technology with ambient sensors placed in CPU, memory, NVMe, SSD, OCP mezzanine connector for internal and external temperature monitoring, and dynamic fan-curve adjustment, which lowers fan power consumption by up to 20% and reduces total cost of ownership - ideal for data centers with extreme workloads.

Comprehensive IT Infrastructure Management

RS500A-E9-PS4 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

ASUS ProCool connector

ASUS ProCool power connectors are designed without any hollow areas, enabling lower impedance, faster heat dissipation and cooler operating temperatures for reduced power loss and increased cost savings.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
RS500A-E9-PS4
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Series
RS500A-E9
Product Model
RS500A-E9-PS4
Product Name
RS500A-E9-PS4 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
Chipset Manufacturer
AMD
Memory
Maximum Memory
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
Controller Type
  • 12Gb/s SAS
  • Serial ATA/600
  • Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    64 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    4
    Number of 3.5" Bays
    4
    Number of Total Expansion Slots
    3
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    4
    Software
    Operating System Supported
  • Windows Server 2016
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • CentOS
  • Ubuntu Linux
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    650 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.5"
    Depth
    24.3"
    Weight (Approximate)
    22.05 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
