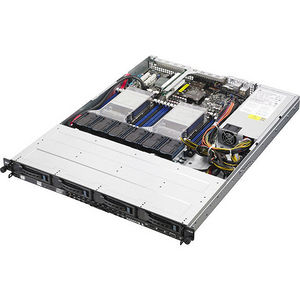

ASUS RS500-E8-PS4 1U Rackmount Barebone - Intel C612 Chipset - Socket LGA 2011-v3 - 2 x CPU Support

PRODUCT LISTING
ABOUT
SPECS

ABOUT

Rack-Optimized with Great Efficiency and Expandability

RS500-E8-PS4 is a 1U rack server that delivers extreme computing power, high memory and storage capacity, as well as highly-flexible expandability. Engineered with premium components throughout, RS500-E8-PS4 provides high dependability and exceptional efficiency levels, making it ideal for datacenter deployment, and both small and medium applications.

SPECIFICATIONS

General Information

Manufacturer

ASUS Computer International

Manufacturer Part Number

RS500-E8-PS4

Manufacturer Website Address

http://usa.asus.com

Brand Name

Asus

Product Model

RS500-E8-PS4

Product Name

RS500-E8-PS4 Barebone System

Product Type

Barebone System

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket LGA 2011-v3

Processor Supported

Xeon

QuickPath Interconnect Supported

Yes

QuickPath Interconnect

9.60 GT/s

64-bit Processing

Yes

Chipset Manufacturer

Intel

Chipset Model

C612

Memory

Maximum Memory

1 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2133/PC4-17000

Number of Total Memory Slots

Controllers

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2400

Graphics Memory Capacity

32 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays

Number of 3.5" Bays

Number of Total Expansion Slots

Number of PCI Express x8 Slots

Interfaces/Ports

Total Number of USB Ports

Number of USB 3.0 Ports

Network (RJ-45)

Yes

VGA

Yes

Number of SATA Interfaces

Software

Operating System Supported

Windows Server 2012

Windows Server 2008 R2

Red Hat Enterprise Linux AS5.6

Red Hat Enterprise Linux AS5.6 x64

Red Hat Enterprise Linux AS6 x64

Red Hat Enterprise Linux AS6

SuSE Linux Enterprise Server 11.2

SuSE Linux Enterprise Server 11.2 x64

CentOS 5.9 x64

CentOS 6.4 x64

Windows Server 2012 R2

Ubuntu Desktop 13.04

Power Description

Input Voltage

120 V AC

230 V AC

Number of Power Supplies Installed

Maximum Power Supply Wattage

600 W

Physical Characteristics

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.5"

Depth

24.2"

Weight (Approximate)

37.48 lb

Miscellaneous

Compatibility

Citrix XenServer 6.0
VMWare ESXi 5.1 U1
VMWare ESXi 5.1
VMWare ESXi 5.0 U2
VMWare ESXi 5.0 U1
VMWare ESXi 5.0

Certifications & Standards

BSMI
CE
C-Tick
FCC(Class A)

Environmentally Friendly

Yes

Environmental Certification

RoHS
