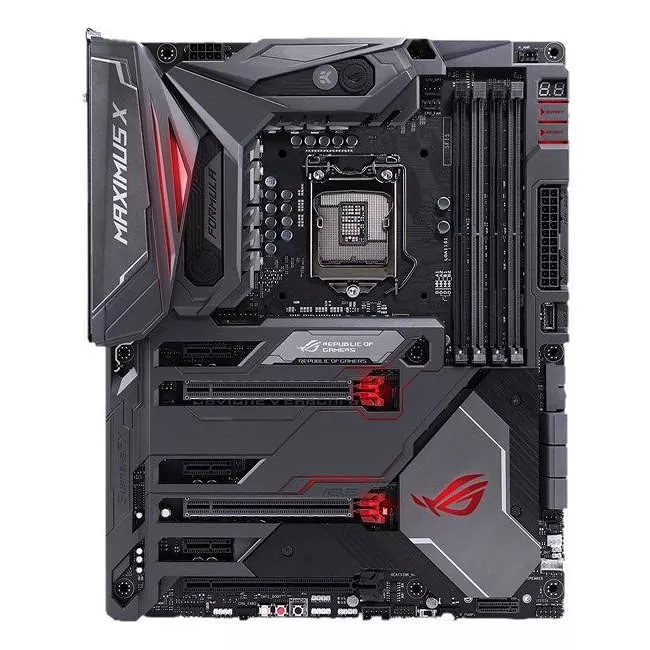

ASU-ROG MAXIMUS X FORMULA-00
MPN: ROG MAXIMUS X FORMULA

ASUS ROG MAXIMUS X FORMULA Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151

Highlights

ASUS ROG Maximus X Formula LGA1151 (300 Series) DDR4 DP HDMI M.2 Z370 ATX Motherboard with onboard 802.11AC WiFi and USB 3.1 for 8th Generation Intel® Core™ Processors

  • Designed exclusively for 8th generation Intel® Coreâ„¢ processors to maximize connectivity and speed with Dual M.2, onboard 802.11AC WiFi, Gigabit LAN, front panel USB 3.1 Gen 2 and Intel® Optaneâ„¢ Memory compatibility
  • 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
  • Optimize system cooling with the CrossChill EK II VRM block and support for customized liquid cooling
  • Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, additional RGB headers, addressable RGB headers and LiveDash OLED display
  • Industry-leading 8-channel HD audio with dual headphone amplifiers and ROG exclusive SupremeFX S1220 CODEC driven by Japanese capacitors

Drawing from a heritage that spans more than a decade, the latest incarnation of the Maximus series augments Intel's Z370 chipset with all the enhancements that enthusiasts crave. Each model sports a unique blend of features to cater to a distinct audience, yet the core ROG DNA ripples through the entire lineup. From overclocking and cooling options to satiate die-hard fanatics, to clean, refined aesthetics that are tastefully accented by RGB lighting, Maximus X-series motherboards bring the octane to your build.

THE EVOLUTIONARY FORMULA

Generation after generation, ROG takes the Maximus Formula to new heights. Follow its evolution, from inception, all the way to the latest incarnation.

COOLING

EXPERTLY TOOLED TOTALLY COOLED CROSSCHILL EK II

CrossChill EK II lets you cool with air or water, no fan required! Redesigned cooling fins deliver up to 35°C-lower MOSFET temperatures on water, and the standard G1/4 threaded fittings mean CrossChill EK II easily fits existing setups - so you you'll benefit from efficient, quiet cooling with the minimum of effort!

M.2 HEATSINK

ROG Maximus X Formula is equipped with an M.2 heatsink integrated into the PCH heatsink. With a huge cooling surface, the heatsink perfectly chills an inserted M.2 SSD - for maximum performance and reliability. Featuring a stylish angular design replete with an awesome glowing ROG eye logo, the heatsink adds a beautiful touch to the build, while the T-sensor allows you to connect a thermal probe and monitor M.2 drive temperatures in real time.

CUSTOMIZATION

LIVEDASH OLED

Maximus X Formula is equipped with LiveDash, a built-in 1.3 OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, LiveDash shows key progress stats in simple language and via traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water Cooling Zone. You're even able to customize the default LiveDash GIF, so that it'll display your own image or animation.

AURA SYNC

ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

RGB LIGHTING PERFECTED

Maximus X Formula features a pair of onboard 5050 RGB headers and a pair of addressable headers that can be connected to compatible lighting strips, fans, coolers, and PC cases, creating a new world of illumination possibilities.
