ABOUT
Power efficiency plus high-resolution graphics, thanks to the integrated Intel Celeron® Quad-Core SoC Processor J1900 with HD Graphics support.

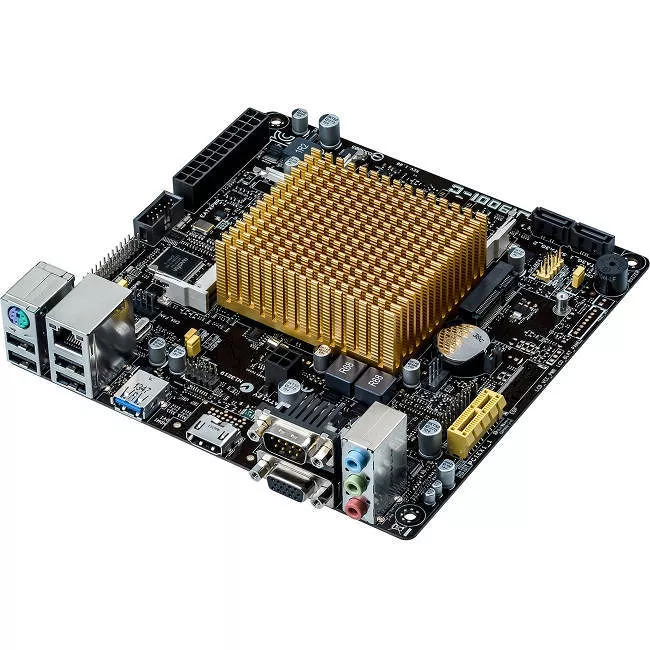

This motherboard features an integrated Intel Celeron® Quad-Core Processor J1900 and Intel HD Graphics. This revolutionary 22nm ultra low voltage SoC (System On a Chip) combines superb processing power and advanced HD graphics support in one small, energy efficient design. Despite minimal power requirements, it still has the processing power to display the latest DirectX® 11 HD graphics. It features support for dual independent displays with resolutions up to 2500x1600, and also has integrated USB 3.0 support.
This motherboard features an integrated Intel Celeron® Quad-Core Processor J1900 and Intel HD Graphics. This revolutionary 22nm ultra low voltage SoC (System On a Chip) combines superb processing power and advanced HD graphics support in one small, energy efficient design. Despite minimal power requirements, it still has the processing power to display the latest DirectX® 11 HD graphics. It features support for dual independent displays with resolutions up to 2500x1600, and also has integrated USB 3.0 support.
See More
SPECIFICATIONS
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
J1900I-C
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
J1900I-C
Product Name
J1900I-C Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Processor Socket
Socket BGA-1170
64-bit Processing
Yes
Integrated Processor
Integrated Processor Manufacturer
Intel
Integrated Processor Type
Celeron
Integrated Processor Model
J1900
Integrated Processor Core
Quad-core (4 Core)
Memory
Number of Memory Slots
2
Memory Form Factor
SoDIMM
Maximum Memory
8 GB
Memory Standard
DDR3-1333/PC3-10600
Memory Technology
DDR3 SDRAM
Memory Speed Supported
1.33 GHz
I/O Controller
Controller Type
Serial ATA/300
Video
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Graphics Controller Memory
512 MB
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC887-VD
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
2
PCI Express Standard
PCI Express 2.0
Total Number of PCI Express Slots
1
Number of PCI Express x1 Slots
1
Number of Mini PCI Express Slots
1
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 2.0 Ports
4
Number of USB 3.0 Ports
1
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
HDMI
Yes
Number of HDMI Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
PS/2 Port
Yes
Number of PS/2 Ports
1
Onboard Interfaces
Number of SATA Interfaces
2
Total Number of Onboard USB Ports
2
Number of Onboard USB 2.0 Ports
2
Onboard Parallel Header
Yes
Onboard Serial Header
Yes
Onboard Audio Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
Mini ITX
Width
6.7"
Depth
6.7"
Miscellaneous
Package Contents
- J1900I-C Desktop Motherboard
- Support Disc
- User's Manual
- I/O Shield
- 2 x SATA 3Gb/s Cable(s)
Certifications & Standards
ACPI 2.0a
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
