Highlights:
- Number of Processors Supported: 2
- Processor Socket: Socket R3 LGA-2011
- Maximum Memory: 1.50 TB
- Memory Standard: DDR4-2400/PC4-19200
Optimized for rack-mounting
RS700-E8-RS4 V2's internal layout is optimized for rack-mounted configurations, with both the CPU and memory placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for increased efficiency- and that makes it perfect for datacenters.
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
90SV03KA-M02LE0
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model

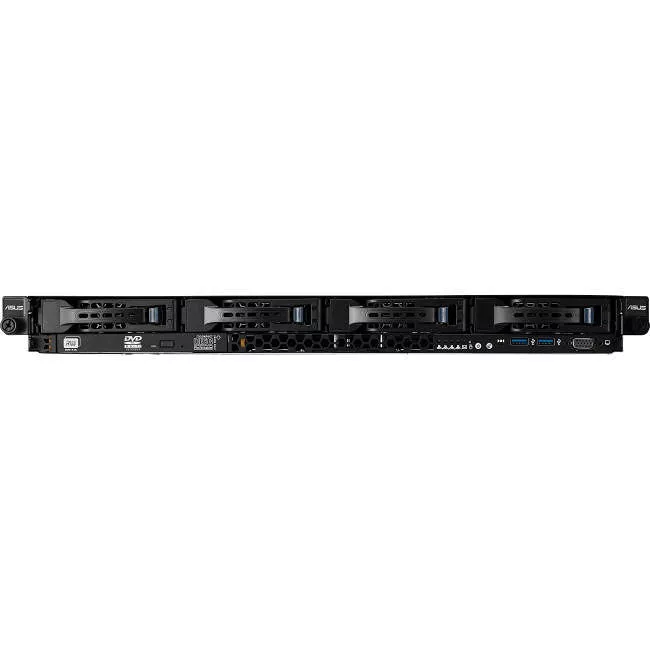

RS700-E8-RS4 V2
Product Name
RS700-E8-RS4 V2 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
24
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
5
Number of External 5.25" Bays
1
Number of 3.5" Bays
4
Number of Total Expansion Slots
4
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2
Number of SATA Interfaces
2
Number of SAS Interfaces
2
Software
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
800 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.5"
Depth
27"
Weight (Approximate)
26.46 lb
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
RoHS
