Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
About
Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYH6K6RMT-P1
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Name

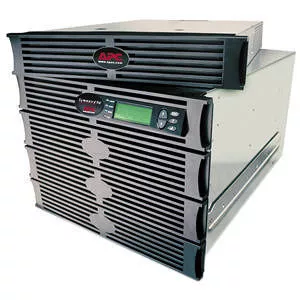

Symmetra RM 6kVA UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
NEMA L6-30P 30A
Receptacle Type
NEMA L6-30P 30A
Receptacle Detail
Number of Battery & Surge Outlets
14
Bypass Switch
Automatic & Manual
Emergency Power OFF
Yes
Cord Length
10 ft
Power Description
Load Capacity (VA)
6000 VA
Load Capacity (Watt)
4200 W
Input Voltage
208 V
Output Voltage
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Alarm
Battery Management
Intelligent Battery Management
Interfaces/Ports
Serial Port
Yes
Network (RJ-45)
Yes
Total Number of Expansion Slots
1
Battery Information
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
12.30 Minute
Backup/Run Time (Half Load)
29.10 Minute
Typical Battery Recharge Time
3 Hour
Hot Swappable
Yes
Environmental Conditions
Maximum Operating Temperature
113°F (45°C)
Thermal Dissipation
741.18 W
Physical Characteristics
Color Family
Black
Product Color
Black
Height
17.5"
Width
19"
Depth
28.7"
Rack Height
10U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
389.82 lb
Miscellaneous
For Country/Region
United States
Package Contents
Additional Information
- Automatic restart of loads after UPS shutdown
- Cold-start capable
- Configurable for N+1 internal redundancy
- Field-replaceable power distribution panel
- Generator Compatible
- Hot-swappable intelligence modules
- Hot-swappable power modules
- InfraStruXure Manager Compatible
- Plug-and-Play external batteries
- Programmable Frequency
- Scalable Power Capacity
- User-replaceable intelligence modules
- User-replaceable power modules
Certifications & Standards
CSA
Product Take Back Program
No
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH6K6RMT-P1_ROHS_DECLARATION&p_FileName=SYH6K6RMT-P1KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036279&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036279&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
REACH free of SVHC
No
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace, optional on-site warranties available, optional extended warranties available
