About
Specifications
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
About
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYA8K16RMP
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Series
LX
Product Name

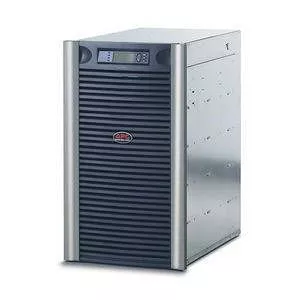

Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Hard Wire 4-wire
Receptacle Type
Receptacle Detail
Number of Battery & Surge Outlets
13
Overload Protection
Yes
Power Description
Load Capacity (VA)
8000 VA
Input Voltage
208 V AC
Output Voltage
Input Frequency
65 Hz
Output Frequency
60 Hz
Input Current
37 A
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Bypass Switch
Emergency Power OFF
Yes
Interfaces/Ports
Modular Slots
1 x SmartSlot
Battery Information
Battery Characteristics
Spill-proof/Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
5.90 Minute
Backup/Run Time (Half Load)
17 Minute
Typical Battery Recharge Time
3 Hour
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Thermal Dissipation
1463.89 W
Physical Characteristics
Color Family
Dual Color
Product Color
Form Factor
Rack-mountable
Rack Height
19U
Mounting Location
Front
Mounting Preference
Lower
Height
32.9"
Width
18.6"
Depth
27.1"
Weight (Approximate)
437.93 lb
Miscellaneous
For Country/Region
United States
Package Contents
Additional Information
- Automatic restart of loads after UPS shutdown
- Audible and visible alarms prioritized by severity
- InfraStruXure Manager Compatible
- Plug-and-Play external batteries
- Configurable for 120/208 or 120/240 output voltage
Certifications & Standards
CSA
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K16RMP_ROHS_DECLARATION&p_FileName=SYA8K16RMPKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036092&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036092&lang=en-us
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
