About
Specifications
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
About
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYA4K8RMP
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Series
LX
Product Name

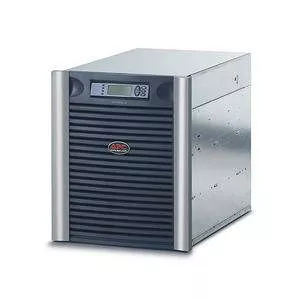

Symmetra LX 4kVA Scalable to 8kVA Rack-mount UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Hard Wire 4-wire
Receptacle Type
Receptacle Detail
Number of Battery & Surge Outlets
7
Overload Protection
Yes
Power Description
Load Capacity (VA)
4000 VA
Input Voltage
208 V AC
Output Voltage
Input Frequency
65 Hz
Output Frequency
60 Hz
Input Current
18 A
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Bypass Switch
Emergency Power OFF
Yes
Interfaces/Ports
Modular Slots
1 x SmartSlot
Battery Information
Battery Characteristics
Spill-proof/Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
5.90 Minute
Backup/Run Time (Half Load)
16.90 Minute
Typical Battery Recharge Time
3 Hour
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Thermal Dissipation
1086.41 W
Physical Characteristics
Color Family
Dual Color
Product Color
Form Factor
Rack-mountable
Rack Height
13U
Mounting Location
Front
Mounting Preference
Lower
Height
22.5"
Width
18.6"
Depth
27.1"
Weight (Approximate)
295.62 lb
Miscellaneous
For Country/Region
United States
Package Contents
Additional Information
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery modules connected in parallel
- Cold-start capable
- Disconnected battery notification
- Field-replaceable power distribution panel
- Frequency and voltage regulation
- Generator Compatible
- Plug-and-Play external batteries
- Power conditioning
- Power Modules connected in parallel
- Predictive failure notification
- Programmable Frequency
- Removable input/output wiring tray
- Shippable with modules installed
Certifications & Standards
CSA
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA4K8RMP_ROHS_DECLARATION&p_FileName=SYA4K8RMPKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036077&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036077&lang=en-us
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
