High density, double-conversion on-line power protection with scalable runtime
About
High density, double-conversion on-line power protection with scalable runtime
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SURTD5000RMXLP3U
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
RT
Product Name

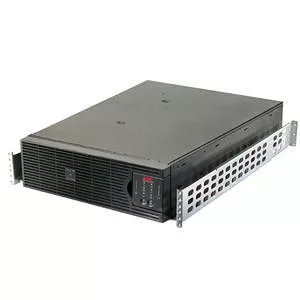

Smart-UPS RT 5000VA Tower/Rack-mountable UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
NEMA L14-30P
Receptacle Type
NEMA L14-30P
Receptacle Detail
Number of Battery & Surge Outlets
6
Bypass Switch
Emergency Power OFF
Yes
Cord Length
10 ft
Power Description
Load Capacity (VA)
5000 VA
Load Capacity (Watt)
4000 W
Input Voltage
208 V
Output Voltage
Waveform Type
Sine Wave
Surge Energy Rating
365 J
Interfaces/Ports
Serial Port
Yes
Battery Information
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
4.80 Minute
Backup/Run Time (Half Load)
15.10 Minute
Typical Battery Recharge Time
2.50 Hour
Hot Swappable
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Height
5.1"
Width
17"
Depth
26"
Rack Height
3U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
128 lb
Miscellaneous
Package Contents
Certifications & Standards
CSA
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURTD5000RMXLP3U_ROHS_DECLARATION&p_FileName=SURTD5000RMXLP3UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765934&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765934&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
