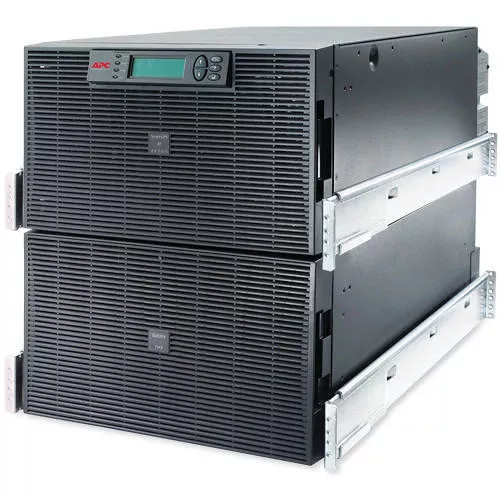

The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
About
The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SURT20KRMXLT
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
RT
Product Name
Smart-UPS RT 20000VA Tower/Rack Mountable UPS
Packaged Quantity
1 Each
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Hard Wire 3-wire (2PH + G)
Receptacle Type
Receptacle Detail
Number of Battery & Surge Outlets
6
Bypass Switch
Emergency Power OFF
Yes
Power Description
Load Capacity (VA)
20 kVA
Load Capacity (Watt)
16 kW
Input Voltage
208 V
Input Current
114 A
Output Voltage
208 V AC
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Interfaces/Ports
Serial Port
Yes
Network (RJ-45)
Yes
Battery Information
Number of Batteries
4
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
4.90 Minute
Backup/Run Time (Half Load)
15.30 Minute
Typical Battery Recharge Time
2 Hour
Hot Swappable
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Height
21"
Width
17"
Depth
30.4"
Rack Height
12U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
546.15 lb
Miscellaneous
For Country/Region
United States
Package Contents
Certifications & Standards
UL 1778
Software Included
PowerChute Management Software
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT_ROHS_DECLARATION&p_FileName=SURT20KRMXLTKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765796&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765796&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin
Philippines
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
