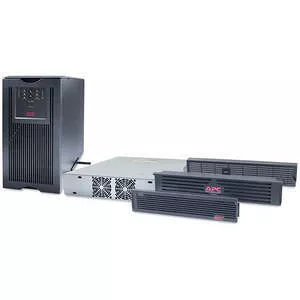

The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.
About
The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SUA5000R5TXFMR
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Name
Smart-UPS 5000VA Rack-mountable UPS
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA L6-30P
Receptacle Detail
Number of Battery & Surge Outlets
15
Dataline Protection
RJ-45
Emergency Power OFF
Optional
Cord Length
8 ft
Power Description
Load Capacity (VA)
5000 VA
Load Capacity (Watt)
4000 W
Input Voltage
208 V
Output Voltage
Waveform Type
Sine Wave
Surge Energy Rating
1020 J
Management
Network Management
SNMP Manageable
Interfaces/Ports
Network (RJ-45)
Yes
Total Number of Expansion Slots
1
Battery Information
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
9.40 Minute
Backup/Run Time (Half Load)
26.70 Minute
Typical Battery Recharge Time
3 Hour
Physical Characteristics
Color Family
Black
Product Color
Black
Height
12.2"
Width
19"
Depth
25"
Rack Height
7U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
320.66 lb
Miscellaneous
For Country/Region
United States
Package Contents
Certifications & Standards
CSA
Software Included
PowerChute Management Software
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA5000R5TXFMR_ROHS_DECLARATION&p_FileName=SUA5000R5TXFMRKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035739&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035739&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace, optional on-site warranties available, optional extended warranties available
Directly Connected Equipment Guarantee
$150000 Lifetime
