Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMX3000RMLV2UNC
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
X
Product Model
SMX3000RMLV2UNC
Product Name

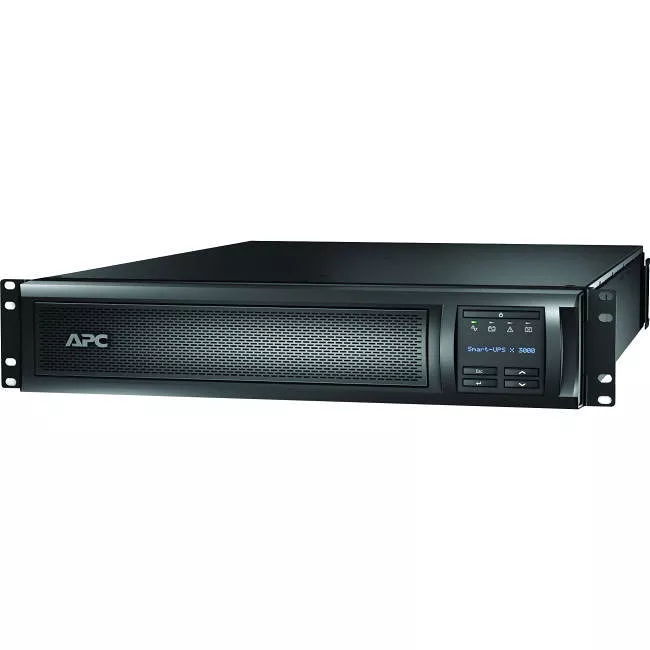

Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacle Type
NEMA L5-30P
Receptacle Detail
Number of Battery & Surge Outlets
7
Emergency Power OFF
Yes
Cord Length
8 ft
Transfer Time
4 ms
Power Description
Load Capacity
2880 VA/2700 W
Input Voltage
120 V
Input Current
15 A
Output Voltage
120 V AC
Waveform Type
Sine Wave
Surge Energy Rating
540 J
Management
Network Management
SNMP Manageable
Interfaces/Ports
Serial Port
Yes
USB
Yes
Battery Information
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
6 Minute
Backup/Run Time (Half Load)
18 Minute
Typical Battery Recharge Time
3 Hour
Hot Swappable
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Height
3.3"
Width
17"
Depth
26.3"
Rack Height
2U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
84.77 lb
Miscellaneous
Package Contents
Certifications & Standards
BSMI|CSA|NOM|TÜV|VCCI Class A
Environmentally Friendly
Yes
Environmental Certification
RoHS
Green Premium
Yes
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000RMLV2UNC_ROHS_DECLARATION&p_FileName=SMX3000RMLV2UNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035432&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035432&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available
Directly Connected Equipment Guarantee
$150000 Lifetime
