APC Smart-UPS protects your data by supplying reliable, network-grade power for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers, minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's.
About
APC Smart-UPS protects your data by supplying reliable, network-grade power for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers, minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SC420
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
SC
Product Name

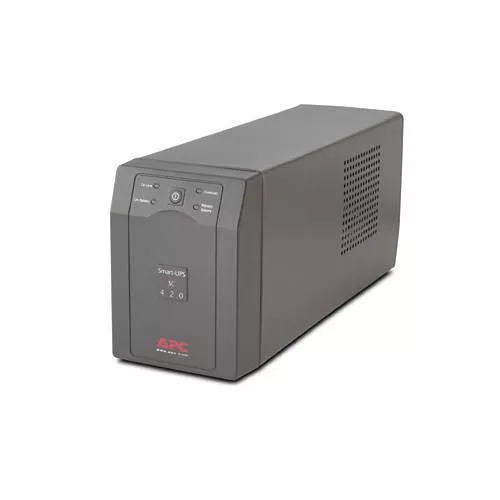

Smart-UPS SC 420VA
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15P
Receptacle Detail
4 x NEMA 5-15R
Number of Battery & Surge Outlets
4
Dataline Protection
RJ-45
Emergency Power OFF
Optional
Cord Length
6 ft
Power Description
Load Capacity
420 VA/260 W
Input Voltage
120 V
Output Voltage
120 V AC
Waveform Type
Stepped Approximated Sine Wave
Surge Energy Rating
412 J
Management
Alarm
Battery Management
Intelligent Battery Management
Controls/Indicators
Status Indicators
- On Line
- On Battery
- Replace Battery
- Overload
Interfaces/Ports
Serial Port
Yes
Battery Information
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
5.50 Minute
Backup/Run Time (Half Load)
13.50 Minute
Typical Battery Recharge Time
5 Hour
Hot Swappable
Yes
Environmental Conditions
Maximum Operating Temperature
113°F (45°C)
Thermal Dissipation
14.65 W
Physical Characteristics
Color Family
Gray
Product Color
Gray
Height
6.6"
Width
4.7"
Depth
14.5"
Rack Height
1U
Form Factor
Tower
Mounting Location
Front
Weight (Approximate)
22.05 lb
Miscellaneous
Package Contents
Additional Information
- Automatic restart of loads after UPS shutdown
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-start capable
- Generator Compatible
Certifications & Standards
CSA
Environmentally Friendly
Yes
Environmental Certification
RoHS
Green Premium
Yes
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SC500RM1U_ROHS_DECLARATION&p_FileName=SC500RM1UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764602&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764602&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
Directly Connected Equipment Guarantee
$150000 Lifetime
