MPN: SBPSU10K15FC1M1

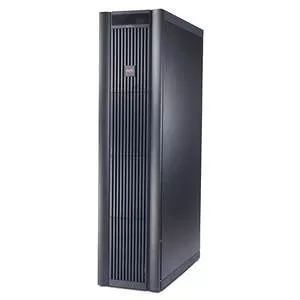

APC SBPSU10K15FC1M1 Smart-UPS VT Maintenance Bypass Panel 10-15kVA 208V Floor Mount

Highlights

About

Specifications

Meets UL Requirements
Power Availability
Top and bottom cable entry (standard)
Wrap Around System Bypass

Specifications

General Information

Manufacturer

Schneider Electric SA

Manufacturer Part Number

SBPSU10K15FC1M1

Manufacturer Website Address

http://www.schneider-electric.com

Brand Name

APC by Schneider Electric

Product Name

10-15kVA Floor Mount Maintenance Bypass Panel

Product Type

Bypass Switch

Technical Information

Plug/Connector Type

Hard Wire 5-wire

Receptacles

1 x Hard Wire 5-wire (3PH + N + G)

Power Description

Load Capacity (VA)

15 kW

Input Voltage

220 V AC

Output Voltage

120 V AC

208 V AC

Current

45.80 A

41.60 A

Physical Characteristics

Form Factor

Floor-mountable

Height

58.5"

Width

13.8"

Depth

32.5"

Weight (Approximate)

230 lb

Miscellaneous

Package Contents

10-15kVA Floor Mount Maintenance Bypass Panel
User Manual

Additional Information

Black Color
Power Availability
Units per Pallet: 1.00
Meets UL Requirements
Wrap Around System Bypass
Top and bottom cable entry (standard)

Compatibility

Smart-UPS VT

Certifications & Standards

UL 1778
UL Listed
cUL Listed

Warranty

Limited Warranty

1 Year
