About
Specifications
Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.
About
Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3357
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter SX
Product Name

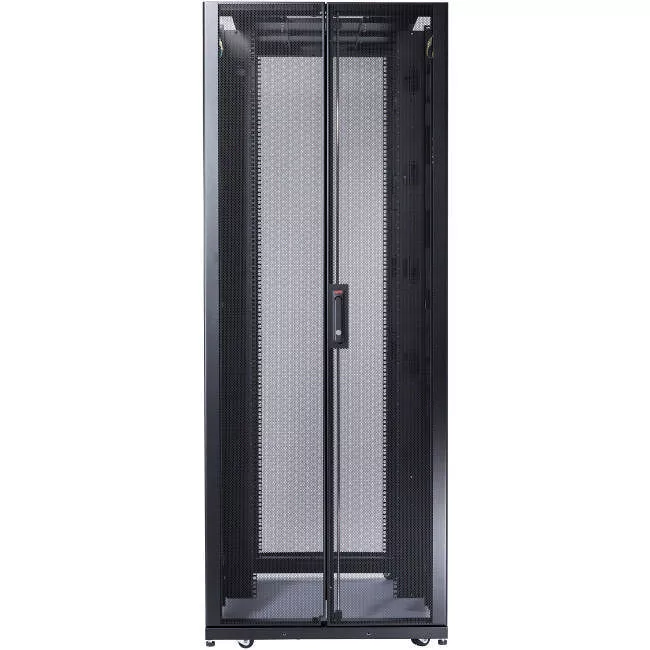

NetShelter SX 48U 750mm Wide x 1200mm Deep Enclosure
Product Type
Rack Cabinet
Technical Information
Front Rail
Yes
Rear Rail
Yes
Application/Usage
Features
Physical Characteristics
Form Factor
Floor Standing
Color Family
Black
Product Color
Black
Units Per Pallet
1
Dynamic/Rolling Weight Capacity
2254.73 lb
Static/Stationary Weight Capacity
3006.31 lb
Door Material Gauge
16
Rail Material Gauge
14
Roof/Top Material Gauge
18
Side Panel Material Gauge
18
Height
88.9"
Width
29.5"
Depth
47.2"
Weight (Approximate)
408.85 lb
Rack Height
48U
Rack Width
19"
Miscellaneous
Package Contents
- NetShelter SX 48U 750mm Wide x 1200mm Deep Enclosure
- Baying Hardware
- Documentation CD
- Key(s)
- Leveling Feet
- Mounting Hardware
- Pre-installed Casters
- Side Panels
- User Manual
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Environmentally Friendly
Yes
Environmental Certification
RoHS
Green Premium
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3357_ROHS_DECLARATION&p_FileName=AR3357KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760096&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760096&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_V1
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_V1
REACH free of SVHC
Yes
Toxic Heavy Metal Free
Yes
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
