About
Specifications
Feature-rich enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.
About
Feature-rich enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3355
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter SX
Product Name

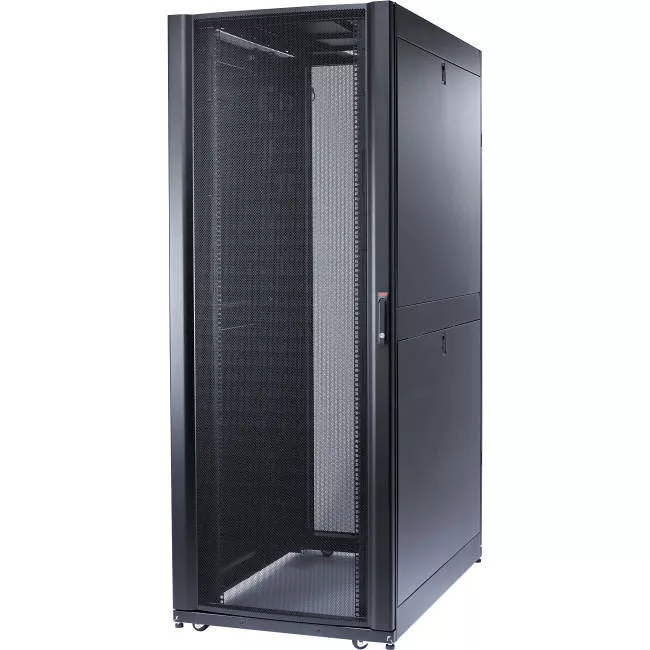

NetShelter SX Enclosure Rack Cabinet
Product Type
Rack Cabinet
Physical Characteristics
Color Family
Black
Product Color
Black
Units Per Pallet
1
Dynamic/Rolling Weight Capacity
2250 lb
Static/Stationary Weight Capacity
3000 lb
Door Material Gauge
18
Rail Material Gauge
14
Roof/Top Material Gauge
18
Side Panel Material Gauge
18
Height
83.6"
Width
29.5"
Depth
47.2"
Weight (Approximate)
372.58 lb
Rack Height
45U
Rack Width
19"
Miscellaneous
Package Contents
- NetShelter SX Enclosure Rack Cabinet
- Baying Hardware
- Key(s)
- Keyed-Like Doors
- Side Panels
- Leveling Feet
- Mounting Hardware
- Pre-Installed
- Side Panels
- User Manual
Additional Information
- Regulatory Approvals: UL 60950-1
- Standards: EIA-310-E
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Environmentally Friendly
Yes
Environmental Certification
RoHS
Green Premium
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3355_ROHS_DECLARATION&p_FileName=AR3355KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194534&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194534&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_V1
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_V1
REACH free of SVHC
Yes
Toxic Heavy Metal Free
Yes
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
