About
Specifications
Tall enclosure with 48U spaces for additional equipment Compact width to optimize data center space For low to medium density server and networking applications
About
Tall enclosure with 48U spaces for additional equipment Compact width to optimize data center space For low to medium density server and networking applications
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3307W
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter SX
Product Model
AR3307W
Product Name

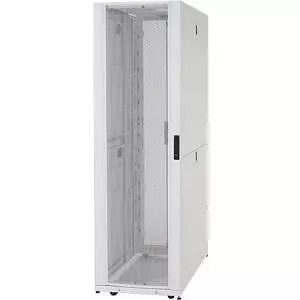

NetShelter SX 48U 600mm Wide x 1200mm Deep Enclosure with Sides White
Product Type
Rack Cabinet
Technical Information
Application/Usage
Server
Mounting Preference
No Preference
Physical Characteristics
Color Family
White
Product Color
White
Maximum Weight Capacity
3010 lb
Dynamic/Rolling Weight Capacity
2250 lb
Static/Stationary Weight Capacity
3000 lb
Height
88.9"
Width
23.6"
Depth
42.1"
Weight (Approximate)
304.74 lb
Rack Height
48U
Rack Width
19"
Rack Depth
36.02"
Miscellaneous
For Country/Region
United States
Package Contents
- NetShelter SX 48U 600mm Wide x 1200mm Deep Enclosure with Sides White
- Baying Hardware
- Documentation CD
- Key(s)
- Keyed-alike Doors and Side Panels
- Leveling Feet
- Mounting Hardware
- Pre-installed Casters
- Side Panels
Compatibility
1U Servers
Certifications & Standards
TAA|BAA via COTS
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3307W_ROHS_DECLARATION&p_FileName=AR3307WKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134966&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134966&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC
Yes
Toxic Heavy Metal Free
Yes
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin
Thailand
TAA Compliant
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
