Wide enclosure with increased cable management options for high density server and networking applications 42U height to easily roll through doorways
About
Wide enclosure with increased cable management options for high density server and networking applications 42U height to easily roll through doorways
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3150X609
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter SX
Product Model
AR3150X609
Product Name

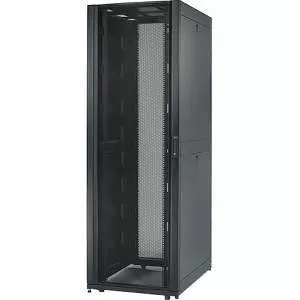

Netshelter SX 42U 750mm Wide x 1070mm Deep Enclosure Without Sides Black
Product Type
Rack Cabinet
Technical Information
Application/Usage
Mounting Location
Front
Mounting Preference
No Preference
Physical Characteristics
Color Family
Black
Product Color
Black
Dynamic/Rolling Weight Capacity
2250 lb
Static/Stationary Weight Capacity
3000 lb
Height
78.4"
Width
29.5"
Depth
42.1"
Weight (Approximate)
279.68 lb
Rack Height
42U
Rack Width
19"
Rack Depth
36.02"
Miscellaneous
For Country/Region
United States
Package Contents
- Netshelter SX 42U 750mm Wide x 1070mm Deep Enclosure Without Sides Black
- Baying hardware
- Casters
- Door key
- Doors
- Leveling feet
- Rack mounting hardware
- Roof
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3150X609_ROHS_DECLARATION&p_FileName=AR3150X609KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194486&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194486&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC
Yes
Toxic Heavy Metal Free
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
