Standard enclosure for low to medium density server and networking applications. Compact width to optimize data center space. 42U height to easily roll through doorways.
About
Standard enclosure for low to medium density server and networking applications. Compact width to optimize data center space. 42U height to easily roll through doorways.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3100X609
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter SX
Product Model
AR3100X609
Product Name

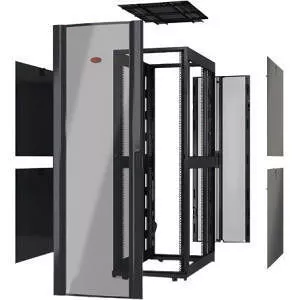

NetShelter SX 42U 600mm Wide x 1070mm Deep Enclosure Without Sides Black
Product Type
Rack Cabinet
Technical Information
Application/Usage
Features
Physical Characteristics
Color Family
Black
Product Color
Black
Dynamic/Rolling Weight Capacity
2250 lb
Static/Stationary Weight Capacity
3000 lb
Rail Material Gauge
14
Roof/Top Material Gauge
18
Height
78.4"
Width
23.6"
Depth
42.1"
Weight (Approximate)
204.04 lb
Rack Height
42U
Rack Width
19"
Rack Depth
36.02"
Miscellaneous
Package Contents
- NetShelter SX 42U 600mm Wide x 1070mm Deep Enclosure Without Sides Black
- Baying hardware
- Installation guide
- Key(s)
- Mounting hardware
- Pre-installed casters
Compatibility
2/4U Servers
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Environmentally Friendly
Yes
Environmental Certification
RoHS
Green Premium
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3100X609_ROHS_DECLARATION&p_FileName=AR3100X609KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194472&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194472&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_V1
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_V1
REACH free of SVHC
Yes
Toxic Heavy Metal Free
Yes
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
