APC-APTF20KW01-00
MPN: APTF20KW01

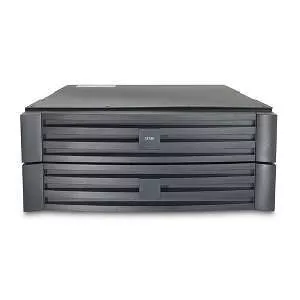

APC APTF20KW01 WW 20KVA Isolation Transformer

Highlights
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
APTF20KW01
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
20kVA Isolation Rack-mountable Transformer
Product Type
Isolation Transformer
Technical Information
Power Rating
20 kVA
Input Receptacle Type
  • Hard Wire 3-wire (2PH + G)
  • Hard Wire 3 wire (1PH+N+G)
  • Hard Wire 4-wire (2PH+N+G)
    • Output Receptacle Type
  • Hard Wire 3-wire (2PH + G)
  • Hard Wire 3-wire (H N + G)
  • Hard Wire 4-wire (2PH+N+G)
    • Output Receptacle Detail
  • 1 x Hard Wire 3-wire (2PH + G)
  • 1 x Hard Wire 3-wire (H N + G)
  • 1 x Hard Wire 4-wire (2PH+N+G)
    • Power Description
    Input Voltage
  • 100 V
  • 120 V
  • 200 V
  • 208 V
  • 230 V
  • 400 V
    • Output Voltage
  • 100 V
  • 120 V
  • 200 V AC
  • 208 V AC
  • 230 V AC
    • Maximum Line Current
    100 A
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Mounting Preference
    Lower
    Rack Height
    4U
    Height
    6.9"
    Width
    17"
    Depth
    29.8"
    Weight (Approximate)
    260.54 lb
    Miscellaneous
    Package Contents
  • 20kVA Isolation Rack-mountable Transformer
  • Documentation CD
  • Hardwire panel
  • Installation guide
  • Rack mounting brackets
  • User manual
    • Certifications & Standards
    CSA|UL Listed
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Green Premium
    Yes
    Optimized Energy Efficiency
    Yes
    Product Take Back Program
    Yes
    Mercury Free
    Yes
    RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APTF20KW01_ROHS_DECLARATION&p_FileName=APTF20KW01KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759850&lang=en-us
    EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759850&lang=en-us
    Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_V1
    End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_V1
    REACH free of SVHC
    No
    Toxic Heavy Metal Free
    Yes
    WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Warranty
    Limited Warranty
    2 Year
    Additional Warranty Information
    2 years repair or replace
