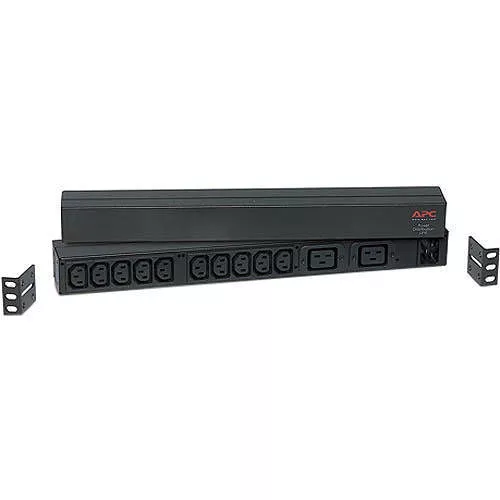

Basic Rack 3.68kVA PDU which allow users to distribute power outlets to rack-mount equipment with low cost power distribution. APC now offers Basic Rack PDU that mount veritcally, without tools in the rear channel of a NetShelter VX.
About
Basic Rack 3.68kVA PDU which allow users to distribute power outlets to rack-mount equipment with low cost power distribution. APC now offers Basic Rack PDU that mount veritcally, without tools in the rear channel of a NetShelter VX.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP9559
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter
Product Name
NetShelter 12-Outlets PDU
Packaged Quantity
1 / Pack
Product Type
PDU
Technical Information
PDU Type
Basic
Plug/Connector Type
IEC 60320 C20
Plug/Connector Detail
1 x IEC 60320 C20
Receptacle Type
Receptacle Detail
Load Capacity (VA)
3680 W
Power Description
Input Voltage
Input Voltage Range
90 V AC - 250 V AC
Output Voltage
Input Current
16 A
Input Frequency
60 Hz
Physical Characteristics
Color Family
Black
Product Color
Black
Mounting Orientation
Horizontal
Mount Type
Rack-mountable
Rack Height
1U
Cord Length
8.20 ft
Height
1.7"
Width
17.6"
Depth
2.2"
Weight (Approximate)
2.16 lb
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
113°F (45°C)
Minimum Operating Humidity
0%
Maximum Operating Humidity
95%
Minimum Storage Temperature
-13°F (-25°C)
Maximum Storage Temperature
149°F (65°C)
Miscellaneous
Package Contents
- NetShelter 12-Outlets PDU
- User Manual
- Rack Mounting Brackets
Additional Information
- Maximum Line Current per phase: 16 A
- Always on Outlets: 12
Certifications & Standards
- cUL Listed
- CE
- UL Listed
- VDE
- Victoria
Environmentally Friendly
Yes
Environmental Certification
Green Premium
Yes
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
REACH free of SVHC
No
Lead Free
Yes
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759556&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759556&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty
Limited Warranty
2 Year
Parts Warranty/Labor
2 Year
Additional Warranty Information
2 years repair or replace
