APC-AP8459NA3-00
MPN: AP8459NA3

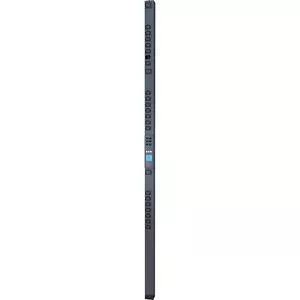

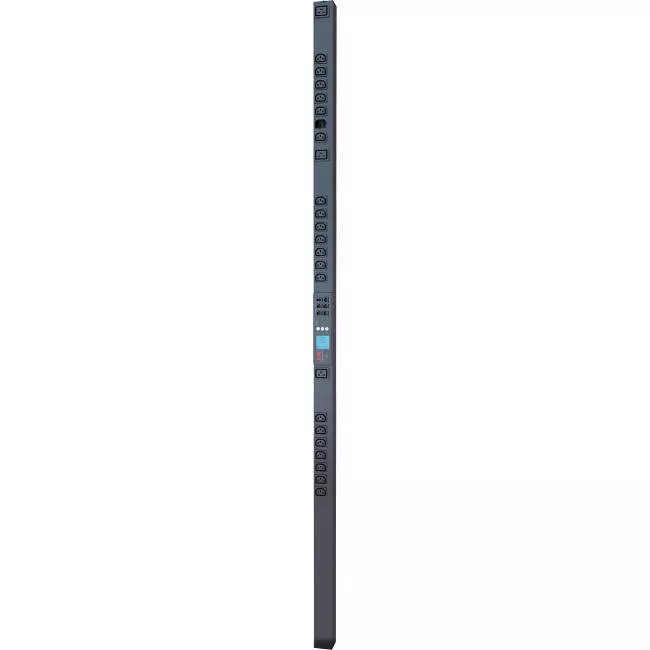

APC AP8459NA3 Metered-by-Outlet Rack PDU 2G, ZeroU, 20A, 208V, (21) C13 & (3) C19

Highlights
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8459NA3
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
Metered-by-Outlet Rack PDU
Product Type
PDU
Technical Information
PDU Type
Metered-by-Outlet
Plug/Connector Type
NEMA L6-20P
Receptacle Type
  • IEC 60320 C13
  • IEC 60320 C19
    • Receptacle Detail
  • 21 x IEC 60320 C13
  • 3 x IEC 60320 C19
    • Power Description
    Input Voltage
  • 200 V
  • 208 V
  • 230 V
    • Input Voltage Range
    120 V AC - 230 V AC
    Output Voltage
    208 V AC
    Input Current
    20 A
    Management
    Management
    • Web
    • SNMP
    • Telnet
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Mount Type
    Rack-mountable
    Rack Height
    0U
    Cord Length
    9.84 ft
    Height
    72"
    Width
    2.2"
    Depth
    2"
    Weight (Approximate)
    14.90 lb
    Miscellaneous
    Package Contents
  • Metered-by-Outlet Rack PDU
  • CAN port terminator
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
    • Certifications & Standards
    UL Listed|VCCI Class A|VDE
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Green Premium
    Yes
    Optimized Energy Efficiency
    Yes
    Product Take Back Program
    Yes
    REACH free of SVHC
    No
    Mercury Free
    Yes
    Lead Free
    Yes
    RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8459NA3_ROHS_DECLARATION&p_FileName=AP8459NA3KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134848&lang=en-us
    EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134848&lang=en-us
    Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
    End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
    WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Country of Origin
    India
    Warranty
    Limited Warranty
    2 Year
    Additional Warranty Information
    2 years repair or replace

    Specifications
