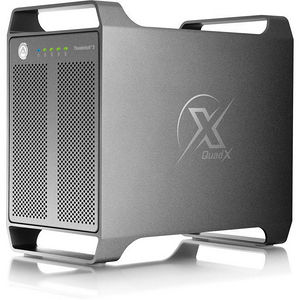

AKiTiO T3QX-T3DIAY-AKTU Thunder3 Quad X Drive Enclosure - Desktop

MPN: T3QX-T3DIAY-AKTU
AKT-T3QX-T3DIAY-AKTU-00
Highlights
  • Depth: 9.5
  • Number of Total Expansion Bays: 4
  • Product Type: Drive Enclosure
  • Condition: New
AKT-T3QX-T3DIAY-AKTU-00
AKT-T3QX-T3DIAY-AKTU-00

AKiTiO T3QX-T3DIAY-AKTU Thunder3 Quad X Drive Enclosure - Desktop

MPN: T3QX-T3DIAY-AKTU
Highlights
  • Depth: 9.5
  • Number of Total Expansion Bays: 4
  • Product Type: Drive Enclosure
  • Condition: New

Thunder3 Quad X

External Thunderbolt™ 3 Storage Solution

This 4-bay storage enclosure is designed to house up to four 2.5-inch or 3.5-inch drives. With Software RAID, four striped SSDs can reach data transfer speeds of up to 1480 MB per second while the Thunderbolt 3 interface provides sufficient bandwidth for additional 4K video signal streams and data transfers at the same time. An ultra durable aluminum casing provides efficient heat dissipation, plus an extra large rear fan keeps your drives cool during long hours of operation.

Features

  • Thunderbolt 3 interface for lightning fast transfer speeds up to 40 Gbps
  • Second Thunderbolt 3 port supports Thunderbolt 3, USB 3.1 (10 Gbps), and DisplayPort devices
  • Power delivery provides up to 27W of power to recharge compatible laptops
  • Dedicated DisplayPort for additional monitor to expand the workspace
  • Holds up to four 2.5 or 3.5 drives with SATA 6Gb/s interface
  • Removable trays for easy SSD and HDD installation
  • Two big handles makes it easy to carry the device
  • Large fan for active cooling with power switch
  • Kensington security slot

Thunderbolt Connectivity

Thunderbolt™ 3

Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all - delivering the fastest, most versatile connection to any dock, display, or data device. For the first time, one computer port connects to Thunderbolt devices, every display, and billions of USB devices. A single cable now provides four times the data and twice the video bandwidth of any other cable, while also supplying power to bus-powered devices.

The Thunder3 Quad X has two Thunderbolt 3 ports. The second port operates the same as a Thunderbolt 3 computer port by supporting Thunderbolt 3 (up to 5 daisy chained), USB 3.1 (10 Gbps), and DisplayPort devices.

DisplayPort

The dedicated DisplayPort connector makes it easy to connect an additional monitor to extend your workspace and it will free up the second Thunderbolt 3 port for other Thunderbolt 3 (up to 5 daisy chained), USB 3.1 (10 Gbps), and DisplayPort devices.

4-Bay Storage Solution

Removeable trays

Designed to house up to four 2.5-inch or 3.5-inch drives, the tray based system allows for easy installation and replacement of either the large desktop hard disk drives or the portable laptop drives and SSD's.

Note: Spare trays are sold separately in a set of four trays, extra screws and drive labels

Reversible USB Type-C™ Connector with Power Delivery (PD)

Power Delivery (27W)

The reversible USB Type-C (USB-C) connector enhances ease of use for connecting devices with a focus on minimizing user confusion for plug and cable orientation. The Thunder3 Quad X also supports power delivery (PD) over USB-C, providing 27W of power to compatible laptops like the MacBook Pro (late 2016) that support charging through the USB-C cable. This allows you to recharge your battery even though the laptop is not plugged into any other power source.

Both Thunderbolt 3 ports provide 27W of power, so it doesn't matter which port you connect to the computer and if you plug in another device that is compatible with USB PD (power delivery) to the second port, you can also charge at 27W.
