AKiTiO SK25-U31AS-AKTU SK-2520 U3.1 DAS Storage System


Highlights

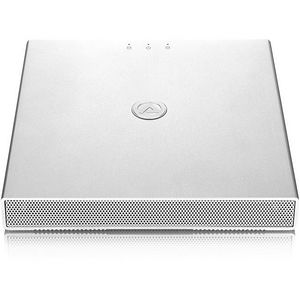

SK-2520 U3.1

The SK-2520 U3.1 is a dual-bay storage enclosure with hardware RAID, designed for two 2.5-inch SATA drives. In combination with two striped SSDs and its fast SuperSpeed USB 3.1 10Gbps (USB 3.1 Gen 2) interface, this bus powered storage drive can deliver speeds up to around 800-900 MB/s.

Features

  • Configurable hardware RAID controller (Non-RAID, RAID 0, RAID 1, SPAN)
  • SuperSpeed USB 10Gbps (USB 3.1 Gen 2) interface
  • Supports Universal Attached SCSI Protocol (UASP)
  • USB power delivery provides 15W of power to compatible laptops
  • Bus powered when external power supply is not connected
  • Designed for two 2.5 SATA drives up to 15mm
  • Supports SATA 6Gb/s (SATA-III) drives
  • Reversible USB Type-C connector
  • Durable all aluminum enclosure
  • Fanless

SuperSpeed USB 10Gbps (USB 3.1 Gen 2)

By incorporating the latest SuperSpeed USB 10Gbps (USB 3.1 Gen 2) technology, the SK-2520 U3.1 is able to deliver up to twice the speed of the USB 3.1 Gen 1 interface which runs at only 5Gbps. At the same time, with a corresponding USB-C to USB adapter cable, the device is still backwards compatible with the widely used USB 3.0 and USB 2.0 technology.

Reversible USB Type-C™ Connector with USB Power Delivery (PD)

The reversible USB Type-C (USB-C) connector enhances ease of use for connecting USB devices with a focus on minimizing user confusion for plug and cable orientation. When the external power adapter is plugged into the device the SK-2520 U3.1 supports power delivery (PD) over USB-C, providing 15W of power to laptops like the MacBook Pro (late 2016) that support charging from a 5V/3A power source. This allows you to work with the external drive without the battery levels of your laptop dropping even when the laptop is not plugged into any other power source.

USB Bus Power

This portable and compact USB drive can run on bus power alone without the need for an extra power adapter if the host computer provides sufficient bus power and the drive's power consumption stays below 7W per drive. An external power adapter is included if bus power is insufficient.

Hardware RAID Controller

With the built-in hardware RAID controller you can mirror the drives with RAID 1 as a reliable backup for your important data, stripe the drives with RAID 0 for optimal performance and maximum transfer rates or you can select SPAN to combine the drives for large storage capacities. Even individually with Non-RAID, the SATA 6Gb/s interface allows each drive to run at full SATA-III speeds.

Benchmark

Results will vary depending on the test environment and the drives but for the best performance, install one or two SATA 6Gb/s SSDs and connect the device to a computer that supports USB 3.1 Gen 2 at 10Gbps.

When connected to a computer that supports only USB 3.1 Gen 1 at 5Gbps or USB 3.0, the speed is limited by the interface to around 400 MB/s. For traditional spinning hard disk drives (HDDs), the transfer rate is limited by the drive to around 100 MB/s.
