MPN: IPT-10G2-SDI-R0
AJA IPT-10G2-SDI-R0 IPT-10G2-HDMI HDMI to SMPTE ST 2110 Video & Audio Converter
Highlights
About
Specifications

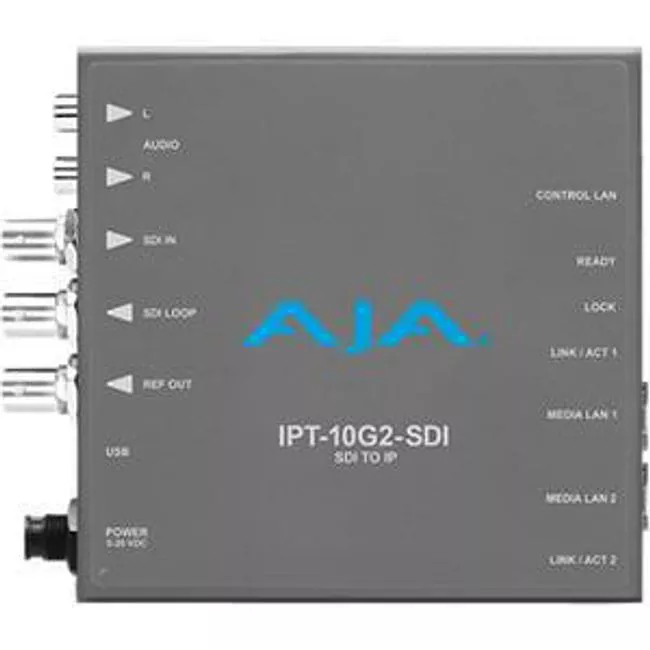

IPT-10G2-SDI is designed to integrate traditional 3G-SDI video sources into SMPTE ST 2110 IP Video infrastructure.
The IPT-10G2-SDI receives baseband video plus up to 16 embedded audio channels over 3G-SDI, then formats the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream. Alternatively stereo audio can be fed into the steam from the included RCA inputs.
2x 10 GigE SFP+ cages are provided, allowing hitless switching (ST 2022-7) redundancy protection for critical transmission environments.
