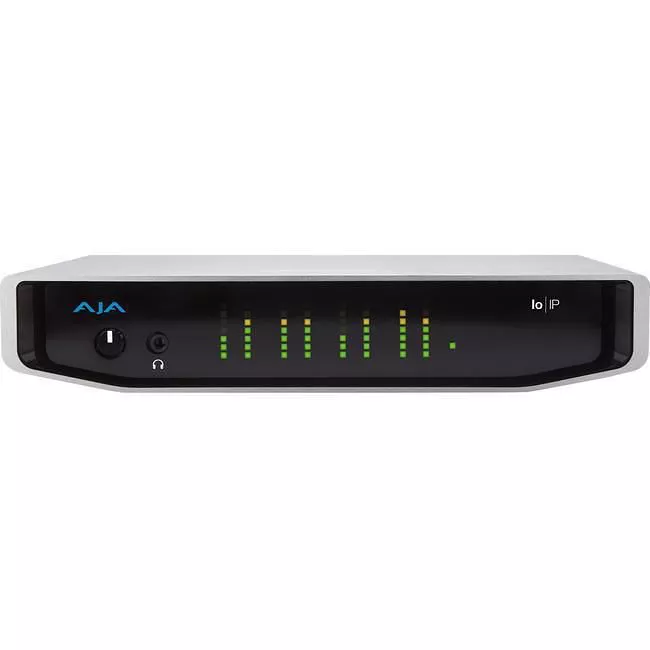

AJA IO-IP-R0 HD Video and Audio I/O over IP for Thunderbolt 3
Io IP has all the portable benefits of the Io family line with two Thunderbolt 3 ports for flexibility. It works with AJA's Control Room, Control Panel software and SDK tools, providing support for leading content creation applications, such as Adobe® Premiere® Pro, Apple® FCP X, Avid Media Composer®, FilmLight products and more. Designed as a flexible platform with support for SMPTE 2022-6 and 2022-7 uncompressed IP video and audio, Io IP offers you the flexibility to keep current as the IP transition proceeds.
Universal Compatibility:
Thunderbolt 3 via USB-C
Io IP provides two Thunderbolt 3 ports for true Thunderbolt flexibility.
Thunderbolt 3 doubles the speed of the previous Thunderbolt 2 standard with up to 40 Gps of throughput and utilizes the universal USB-C connection standard for true simplicity over a single cable and port for today's leading Mac and PC workstations and laptops, ideal for Video and Audio I/O as provided by the Io IP.
Thunderbolt 3 features:
- Thunderbolt, USB, DisplayPort, and power on USB-C
- USB-C connector and cables (small, reversible)
- 40 Gb/s: Thunderbolt 3 - double the speed of Thunderbolt 2
- Bidirectional, dual protocol (PCI Express and DisplayPort)
- 4x lanes of PCI Express Gen 3
- DisplayPort 1.2 - supports two 4K displays (4096 x 2160 30bpp @ 60 Hz)
- Lowest latency for PCI Express audio
- USB 3.1 (10 Gb/s) - compatible with existing USB devices and cables
- DisplayPort 1.2 - compatible with existing DisplayPort displays, devices, and cables
- Daisy chain up to six devices
Thunderbolt 3 - Solutions from AJA
Bring more power, speed and simplicity to your workflows with Thunderbolt 3 solutions from AJA.
Learn how AJA's Io 4K Plus and Io IP I/O devices give you the bandwidth to easily move 4K/UltraHD, High Frame Rate and deep color content over a single cable in and out of your computer, including HDR support across HDMI 2.0.
Transition Seamlessly
Broadcast IP is here. Transition seamlessly with Io IP.
Io IP is the latest member of the venerable Io portable I/O product line that professionals have come to know and rely on with tremendous Thunderbolt support for connecting to the latest Thunderbolt 3 over USB-C laptops and desktops available today.
Io IP is designed to provide you with the familiar Io experience you are used to for your current HD/SD workflows and seamlessly move you into the IP stream.
Io IP offers SMPTE 2022-6/7 uncompressed IP video standards with redundant signal reliability and SMPTE ST 2110 support coming soon.
Throughput
Io IP has 2x 10 GigE SFP cages for multi-channel input and or output enabling effective reception, delivery or both. Mix and match based upon your project's needs with high quality uncompressed 4:4:4 or 4:2:2 HD/SD video and up to 16-Channel embedded audio.
