AJA-IO-4K-R0-00
MPN: IO-4K-R0

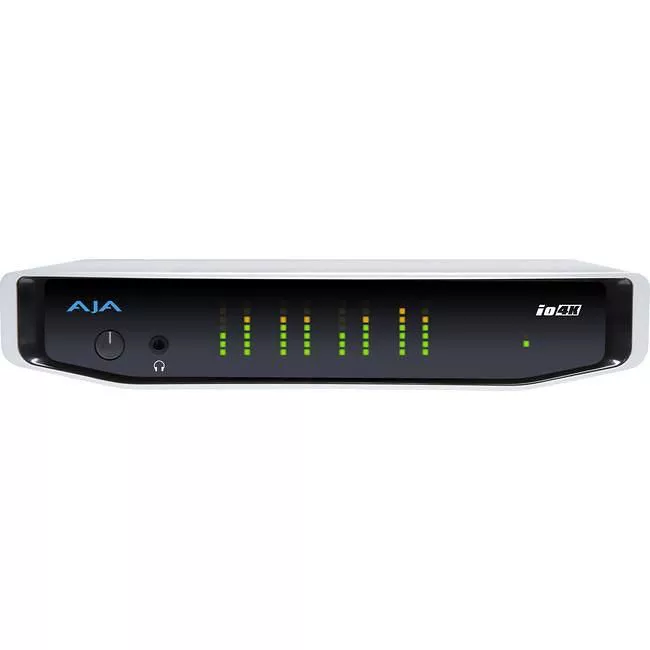

AJA IO-4K-R0 10-bit 4K/UltraHD/3G/Dual Link/HD/SD I/O via Thunderbolt 2

Highlights
Io 4K is the next evolution of capture and output hardware offering a full set of professional video and audio connectivity with support for the latest 4K and UltraHD devices and High Frame Rate workflows. The power of Thunderbolt 2 enables Io 4K to handle a wide range of formats from SD to HD, UltraHD and full 4K over both 3G-SDI and HDMI and support 4K frame rates up to 60p, plus HDR 10 and HLG support over HDMI for emerging HDR workflows.

Features

  • 4 x bidirectional 3G-SDI
  • 4K/UltraHD HDMI I/O
  • Simultaneous SDI and HDMI outputs
  • Realtime 4K to HD downconversion for HD-SDI and HDMI monitoring
  • 10-bit high quality 4:2:2, 4:4:4 and High Frame Rate workflow support
  • Two Thunderboltâ„¢ 2 ports
  • Use with any Thunderbolt 2 system for up to 4K at 10-bit quality and up to 50p/60p
  • Backwards compatible with existing Thunderbolt hosts
  • 16-Channel embedded audio on SDI
  • 8-Channel embedded audio on HDMI
  • DB-25 analog audio output connector
  • XLR 12V power for battery or AC use
  • RS-422 VTR control, Reference, LTC Input
  • Headphone jack and level control for mobile environments

Professional connectivity

Have the connectivity required for today's variety of productions. Io 4K supports 4K, UltraHD, 3G-SDI, Dual Link, HD-SDI and SD-SDI as well as UltraHD and HD over HDMI 1.4a for both capture and output. The HDMI output is also able to accurately display HDR 10, HLG to support emerging HDR workflows.

Thunderbolt 2 technology allows even greater bandwidth between host computer systems and properly engineered Thunderbolt devices. AJA's Io 4K takes full advantage of this improved throughput to allow capture and output of video signals from SD to 4K and everything in between.

Futureproof

Io 4K offers broad and futureproof support for formats all the way from SD to 4K. The realtime down-converter also means you can work at higher resolutions and easily create lower resolution deliverables without the need to recapture or re-edit.

With applicable streaming software, you can utilize all 4x 3G-SDI connections for live stream switching from multiple input sources.

HDR

HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colors to be communicated to your audience.

Io 4K provides this support for your 4K/UltraHD/2K and HD HDR pipelines to HDMI compatible displays in software v12.5 and above by offering HDR 10 support with HDR Infoframe metadata, in accordance with HDMI 2.0a/CTA-861.3. Desktop Software v13 introduces HLG support over HDMI for the latest versions of Adobe Premiere CC.
