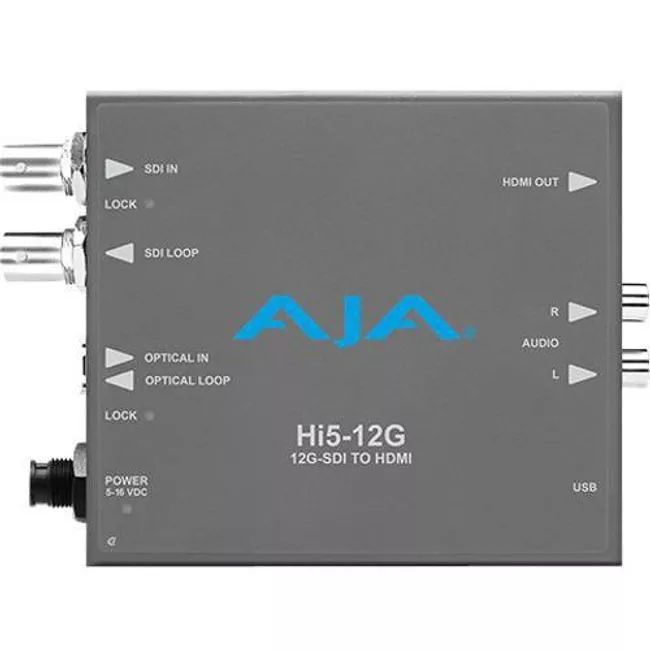

AJA HI5-12G-R0 12G-SDI to HDMI 2.0 Converter

The Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, with single cable simplicity. Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, for cost-effective monitoring in professional workflows. The Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.

It features a 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines.

Fiber SFP equipped Hi5-12G models are available including the Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in Hi5-12G-R and Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).

Features

• Convert 12G-SDI to HDMI 2.0b at up to 4K 60p
• Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0 output
• HDR support for HDR10 and HLG
• Embedded audio support
• 12G-SDI loop out
• Fiber SFP models available
• Configure via USB port and supplied Mini-Config software
• Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
• Five year warranty
