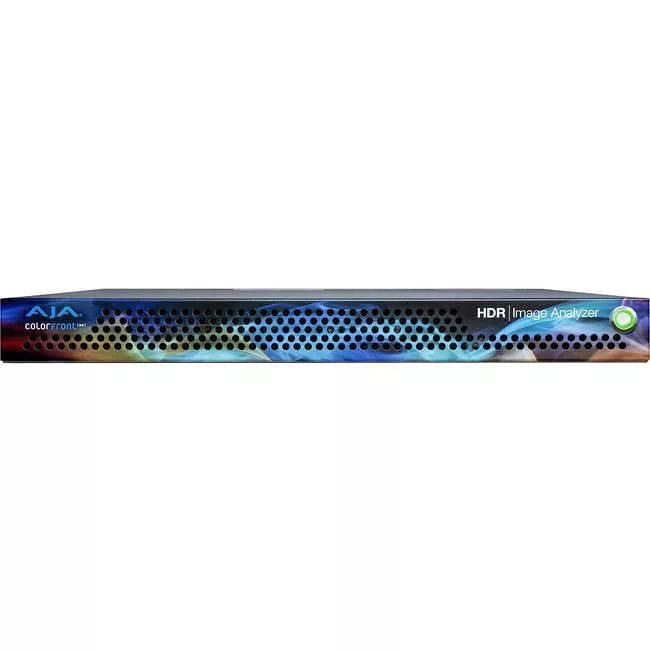

AJA HDR-IMGYZR-88 Image Analyzer

Highlights

HDR Image Analyzer delivers a comprehensive array of tools for the effective analysis of the latest HDR standards - including HLG, PQ and Rec.2020 - from 4K/UltraHD/2K/HD content in a convenient real time 1RU device.

Developed in partnership with Colorfront, AJA HDR Image Analyzer supports a wealth of inputs from camera LOG formats to SDR (REC 709), PQ (ST 2084) and HLG and offers color gamut support for BT.2020 alongside traditional BT.709. AJA hardware prowess ensures high reliability and performance, with 4x 3G-SDI input and output, and DisplayPort connections.

Specifically designed to be used wherever needed, the 1RU form factor fits into a range of environments, providing the confidence you need for consistent and predictable HDR production and mastering.

HDR Monitoring with HDR Analyzer

HDR production demands a reliable and predictable tool for monitoring and analyzing all the steps in the process, to ensure that your artistic vision is followed from camera to the end user's final display.

AJA's HDR Image Analyzer ensures that you are fully in control of your technical choices as you capture, pass on and deliver your HDR/SDR materials.

HDR Image Analyzer offers powerful monitoring and analysis for:

  • Live Production
  • DIT Pipelines
  • Broadcast Monitoring
  • Postproduction
  • QC (Quality Control)
  • Final HDR Mastering

HDR Image Analyzer v1.1 adds support for PQ display over DisplayPort for compatibility with HDR displays.

Input Support:
From Cameras to HDR/SDR

Modern cameras are inherently HDR capable with their wide dynamic ranges, and for live events, recording and broadcasts, it's crucial to monitor their dynamic range and gamut outputs being employed for HDR delivery.

With input support for both leading camera LOG formats as well as SDR, HLG and PQ monitoring from a range of sources, HDR Image Analyzer takes the pain out of HDR monitoring. With a wide range of analysis tools and automatic error logging with timecode stamping, HDR Image Analyzer ensures your production achieves the desired final results.

Camera Support

  • ARRI®
  • Canon®
  • Panasonic®
  • RED®
  • Sony®

Color Gamuts

  • BT.2020
  • BT.709

Dynamic Range Inputs

  • SDR (REC 709)
  • PQ (ST 2084)
  • HLG

Video I/O

  • 4x 3G-SDI I/O up to 4K/UltraHD 60p
  • SDI Auto Signal Detection
  • DisplayPort for UI, up to UltraHD 60p

Key Tools and Interface Details

New Web Interface

HDR Image Analyzer's upcoming v1.1 software update offers a powerful new Web Interface which can be accessed anywhere on a network from any web browser on any OS.

This allows control from a remote computer and simplifies access when placing HDR Image Analyzer in a rack environment, on set, in facility control rooms, QC departments and more. This further provides the ability to update HDR Image Analyzer remotely and to download logs and screenshots to wherever needed.

Remote Desktop Support

RDP further allows control of a HDR Image Analyzer over a network. Your RDP client presents the Analyzer's GUI in a local window as well as providing keyboard/mouse control. The RDP client computer can be a desktop, laptop or tablet.

HDR Analysis Tools

Included in AJA's HDR Image Analyzer's toolsets are waveform, histogram and vectorscope monitoring, plus a host of essential image analysis tools:

  • Automated Color Space switching over SDI for SDR/PQ/HLG
  • Waveform
