AJA-HA5-12G-T-ST-00
MPN: HA5-12G-T-ST

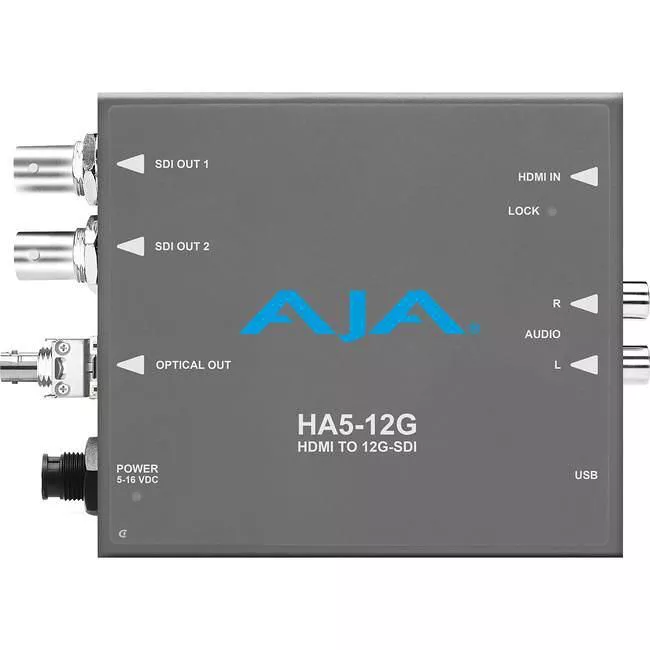

AJA HA5-12G-T-ST HDMI 2.0 to 12G-SDI Converters

Highlights

AJA's HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. HA5-12G includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source or two-channel analog audio (RCA) input.

HA5-12G also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.

HA5-12G-T and HA5-12G-T-ST Fiber SFP-equipped models are single channel transmitters capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC or ST Fiber link respectively. These models ship with SFPs installed, and include all functionality of the HA5-12G, with the added benefit of extending audio and video signals further.

Features

HA5-12G Features:

  • Convert HDMI 2.0b up to 4K/UltraHD 60p to 12G-SDI with a second mirrored output
  • Supports up to 60p input at 4:4:4/4:2:2/4:2:0
  • HDMI EDID Emulation
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • HDR Infoframe decoder as defined in CTA-861-G and HDMI v2.0b
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • The Lock LED adjacent to the HDMI input connector indicates by color the detected signal type. Off is no signal, Green is SD-SDI, Red is HD-SDI, Amber is 3G-SDI, Purple is 6G-SDI, and Blue is 12G-SDI.
  • Configure via USB port and supplied AJA Mini-Config software
  • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
  • USB port used with Mini-Config software application to configure the device via PC/Mac
  • Covered by five year warranty and AJA's advanced replacement policy
