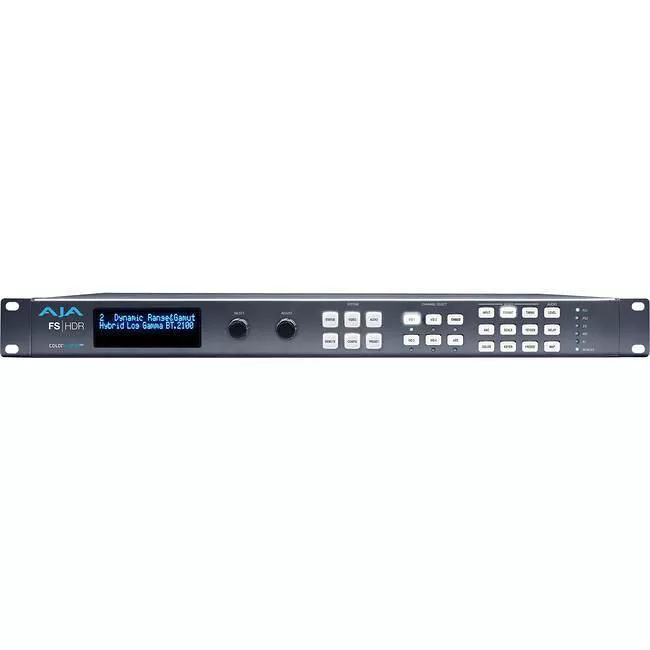

AJA FS-HDR-R0 HDR 4K/UltraHD/2K/HD Frame Synchronizer and Converter
In Single Channel Mode, FS-HDR also serves as a full, 1-Channel up, down, cross-converter for 4K/UltraHD/2K/HD HDR transformation. In 4-Channel Mode, FS-HDR offers 4 independent channels of 2K/HD HDR/WCG transformations as well as up, down, and cross conversions.
FS-HDR Colorfront Engine TV Mode
TV Mode is a new operational mode that provides a simple to use transform selection interface with minimal controls required for live television production. It addresses color correction and camera correction while adding two new controls essential for HDR/SDR transforms. These new controls are for Knee Point and Knee Slope and they help to manage highlights and roll-off in HDR to SDR and HDR to SDR conversions. They also improve the quality of the SDR output by using more of the information available in the HDR program. Shouldn't your SDR deliverable benefit from all the effort put into your HDR production?
The Colorfront Engine uses conversion algorithms based on the human visual system that provide better SDR to HDR color transformation as well, improving the overall look of SDR sources used in your HDR production. To protect and maintain color fidelity of SDR brand colors used in graphics or in-camera, the combination of SDR to HLG and HLG to SDR transforms using the Colorfront Engine TV Mode provides the necessary round-tripping capabilities.
A perceptual transform integrates the various human perceptual phenomena into a model or perceptually linear transform space. Unique to the FS-HDR Colorfront Engine TV Mode, transforms are calculated in this perceptual space. Dynamic range, surround illumination, color volume, perceived saturation, and perceived hue are accounted for.
FS-HDR for Real Time HDR Workflows
Deliver more immersive content to audiences with the power and flexibility of AJA FS-HDR. See how FS-HDR and the Colorfront Engine can simplify real time HDR/WCG transformations and makes it easy to maintain the look you've worked to achieve across SDR to HDR, HDR to HDR, and HDR to SDR for both 4K and HD needs.
Learn more about the device's extensive capabilities, including extensive camera log translations and more.
The pursuit of High Dynamic Range (HDR) is the dream of getting closer to the Human Visual System (HVS) in all that we experience as viewers. FS-HDR has been designed to get us all there faster with a low profile, stand-alone, and real time device uniquely designed to bridge SDR to HDR, HDR to SDR, and HDR to HDR, all in real time.
HDR Conversions:
- HDR to HDR
- HDR to SDR
- SDR to HDR
WCG Conversions:
- BT.709 and BT.2020
Up and Down Conversions:
- Converting HD SDR BT.709 sources to UltraHD HDR BT.2020
- Converting UltraHD HDR BT.2020 sources to HD SDR BT.709 or HD HDR BT.2020
FS-HDR Key Features
- HDR to HDR, SDR to HDR and HDR to SDR conversions for Dynamic Range and Wide Color Gamut needs.
- Support for two Operational Modes:
- Single Channel Mode for 4K/UltraHD or 2K/HD frame sync and conversion including HDR conversions
