AJA-3G-AMA-R0-00
MPN: 3G-AMA-R0

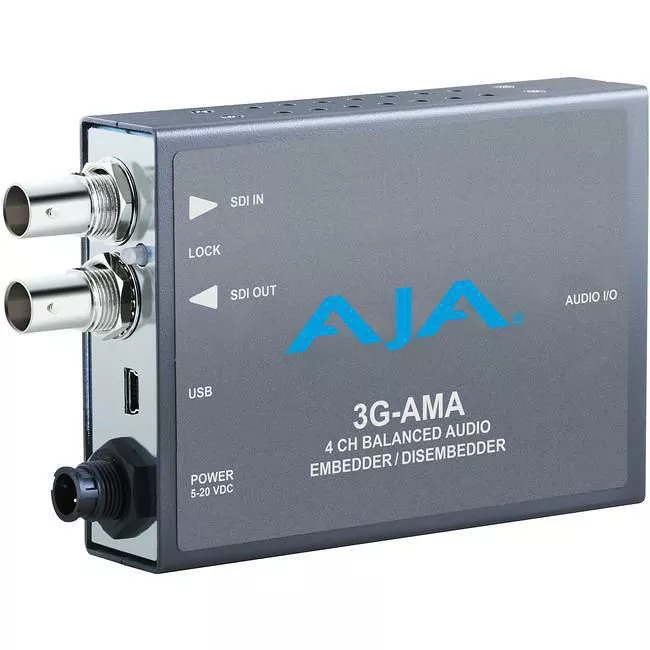

AJA 3G-AMA-R0 3G-SDI 4-Ch Analog Audio Embedder/Disembedder


Highlights

The 3G-AMA is a 4-Channel analog audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard.

Features

  • 3G-SDI Embedder/Disembedder
  • 4-Channel Balanced Analog Audio I/O
  • Supplied XLR breakout cable
  • USB connectivity via AJA MiniConfig software
  • Dipswitch configuration
  • 5-20VDC Power

Supplied Breakout Cable

Additional connections on included breakout cable.

USB and Mini-Config Support

AJA's free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.
